Zmart Digital Thermostat Relay Switch for PID Temperature Controller 40A SSR Heatsink Thermocouple K Includes Original Japanese Specification Sheet

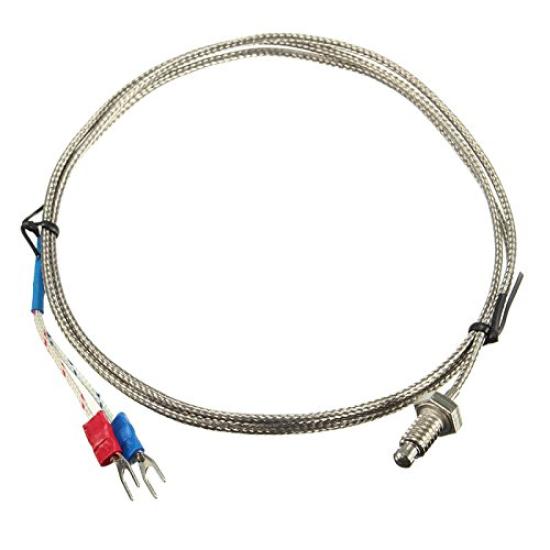

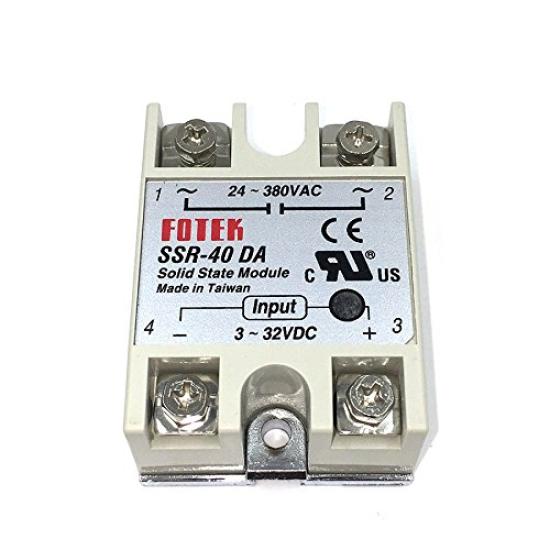

The Japanese manual is a specification sheet. It is written in a unique way and is not as detailed as a manual. This product includes a PID temperature controller, 40A SSR, a heat sink, and a 2m K probe. Display: Dual Celsius (C) display. Range: -0 to 400°C (only for factory-installed K-type thermocouples). Supported thermocouples: K, J, S, E, R, Wre3 to Wre25. Thermoresistors: PT100, Cu50. Main Output: SSR for PID cooling/heating control. One relay alarm: Normally open, capacity 250V/3A AC or 30V/3A DC. Seven dual output combinations with high/low/high deviation/low deviation/interval/out-of-interval/break alarms. Accuracy: 0.5%. Dimensions: DIN: 1/16 (48mm x 48mm x 110mm). Weight: Approximately 200g. Individually programmable PID control parameters, including P, I, d, control period, and digital filter coefficients. Ready-to-connect relay control. K-type thermocouple: 0 to 400°C, 2m cable. Compact design: Great form factor for incorporating/building into DIN 1/8 products. Input: TC (K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal. Control output: SSR. Alarm output: 1 line output. Seven alarm modes: high/low/high deviation/low deviation/interval/out-of-interval/break alarm. 1x REX-C100 PID Temperature Controller SSR Output 1x K Thermocouple (0~400℃, 2m Cable) 1x SSR 40A 1x SR Heatsink 1x User Manual (English, Japanese) This is an imported product, and the packaging may be damaged. The color may appear differently on your monitor than in person. Thank you for your understanding. We strive to provide accurate product descriptions, but in the unlikely event that the actual product differs from the actual product, the actual product will take precedence.
