Feature:

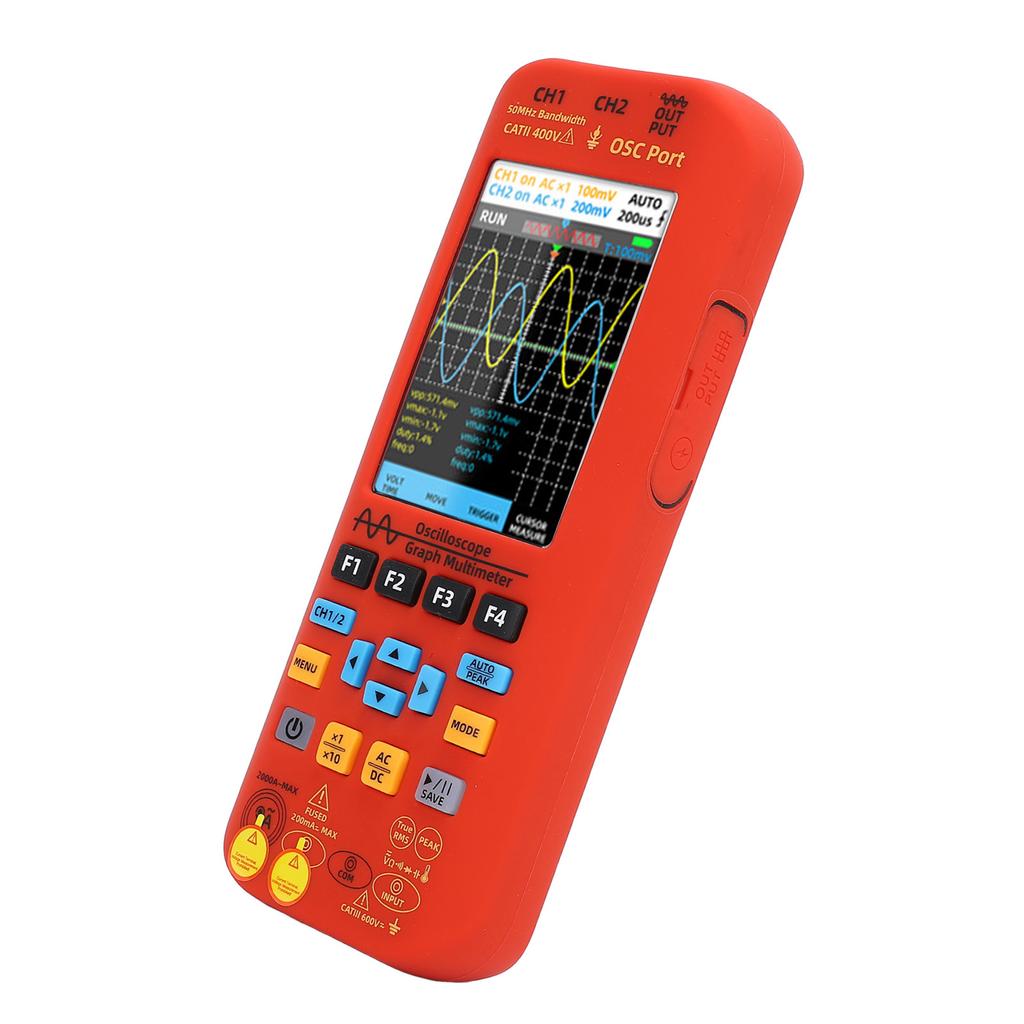

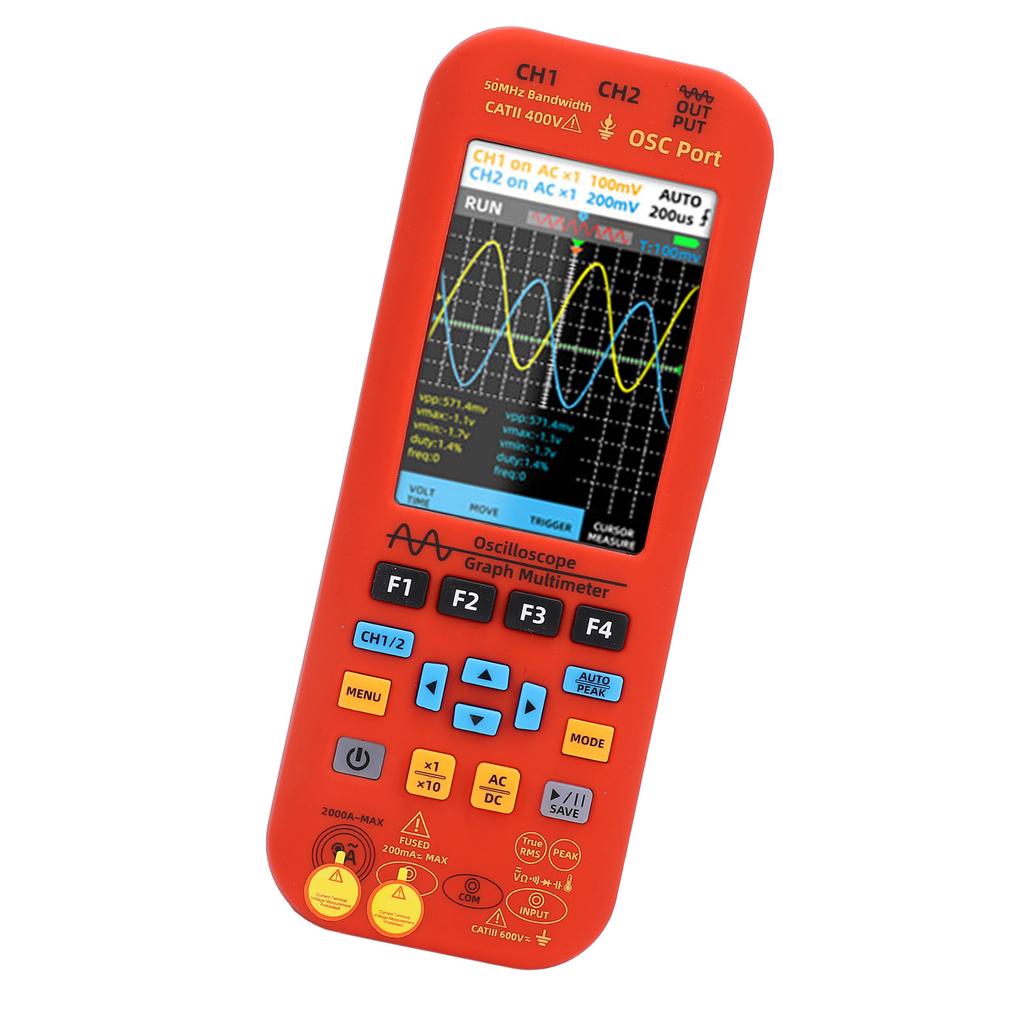

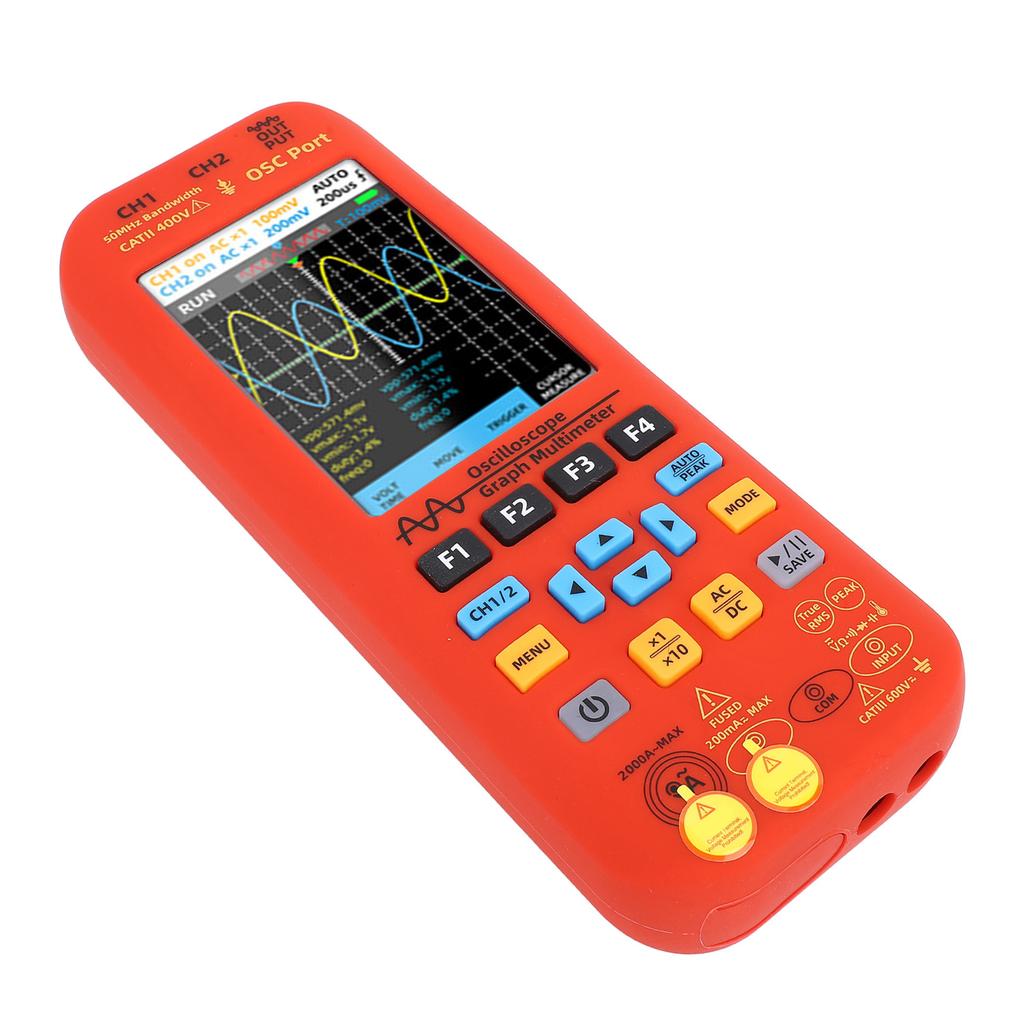

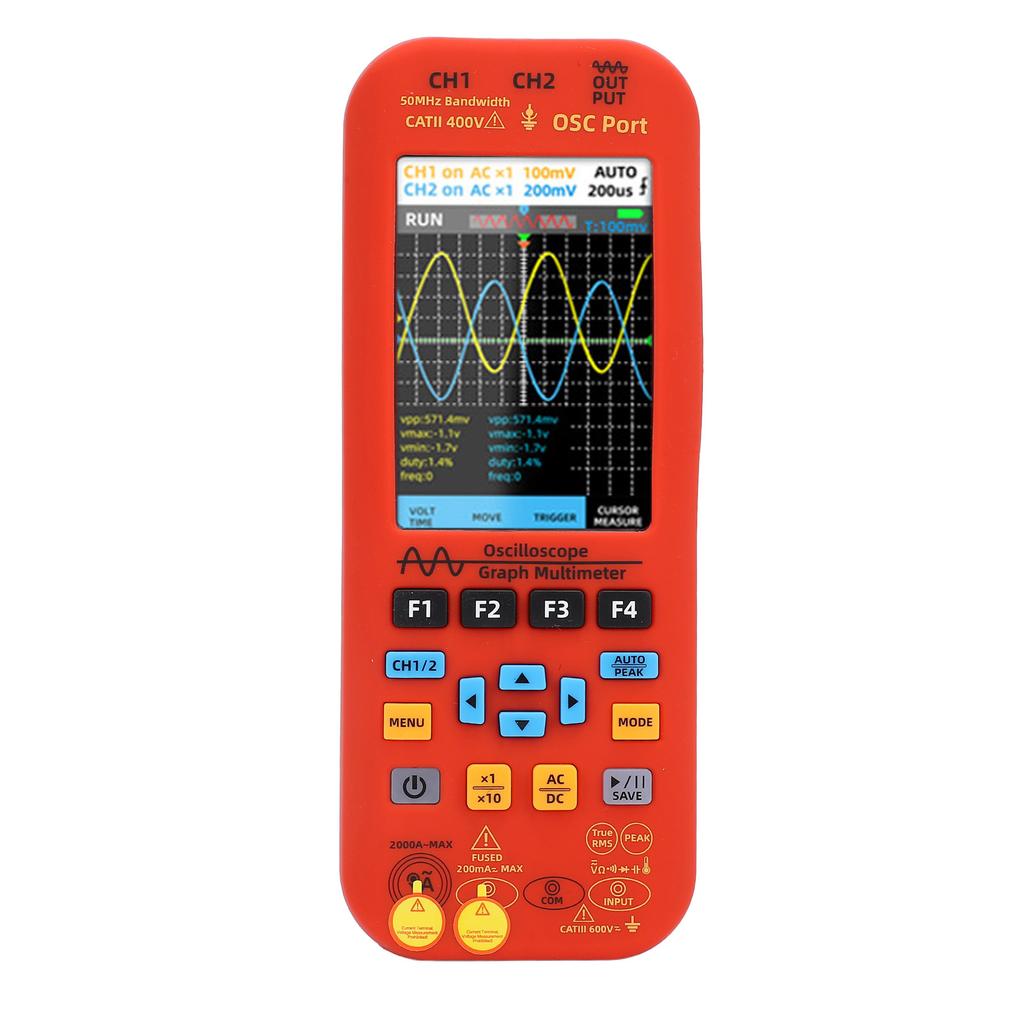

1. [Large Color Screen] Handheld oscilloscope multimeter features 3.98 inch TFT screen with 480x320 DPI, providing clear data for accurate measurements.

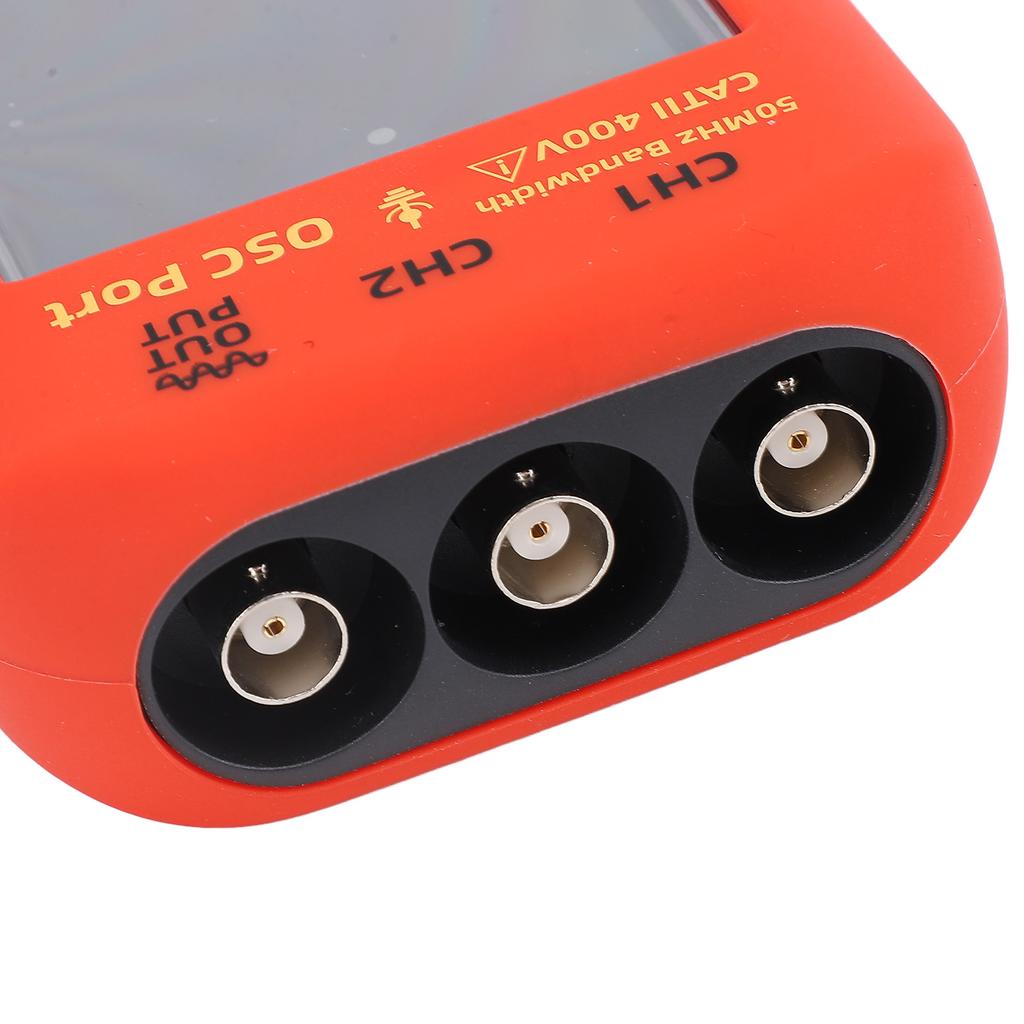

2. [Double Channel] With isolated dual channels, the oscilloscope ensures accurate signal detection by preventing interference between channels, making signal detection more accurate.
3. [Dual Mode Display] Easily switch between oscilloscope and multimeter modes to improve work efficiency and versatility in various electronic projects.
4. [Shock Proof Design] Equipped with silicone protective cover, silicone button, and silicone test pen, the multimeter is designed to withstand daily bumps and drops for long lasting durability.
5. [Intelligent Anti Burning] Voltage current meter features intelligent overload protector, preventing the meter from burning out during measurements, ensuring reliable usage even for beginners.
Specification:
Item Type: Oscilloscope Multimeter Signal Generator
Material: ABS, silicone
Model: O9
Power Supply Battery: 1 x lithium ion battery 5000mAh (built in)
Multimeter Technical Specifications
Function Range Resolution Accuracy
DC Voltage (V) 2.0000V 0.0001V ±(0.8%+3)
20.000V 0.001V
200.00V 0.01V ±(0.5%+5)
1000V 0.1V
DC Voltage (mV) 20.000mV 0.001mV ±(1.0%+5)
200.00mV 0.01mV ±(1.0%+3)
AC Voltage (V) 2.0000V 0.0001V ±(1.0%+3)
20.000V 0.001V
200.00V 0.01V ±(1.2%+5)
750V 0.1V
AC Voltage (mV) 20.000mV 0.001mV ±(1.2%+5)
200.00mV 0.01mV ±(1.0%+3)
AC Voltage Frequency Response: 40Hz~1kHz
DC Current (mA) 20.00mA 0.001mA ±(1.0%+3)
200.00mA 0.01mA
AC Current (mA) 20.00mA 0.001mA ±(1.2%+5)
200.00mA 0.01mA
Flexible Current Clamp AC Current (A) 200.0A 0.1A ±(1.0%+5)
2000A 1A
The current clamp is AC 50Hz, the relationship between current and tower is 1mV 10A; The compatible current coils are 100mv at 1000A
Resistance 200.00Ω 0.1Ω ±(1.2%+5)
2.0000KΩ 0.0001kΩ ±(1.0%+3)
20.000KΩ 0.001kΩ
200.00KΩ 0.01kΩ
2.0000MΩ 0.0001MΩ ±(1.5%+5)
20.000MΩ 0.001MΩ
200.00MΩ 0.01MΩ
Capacitance 999.99nF 0.01nF ±(0.5%+20)
9.999uF 0.001uF ±(4.5%+5)
999.99uF 0.01uF
99.999mF 0.001mF ±(5%+10)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)
(-4~1832)℉ 1℉
Diode Yes
On/Off Yes
Signal Generator Technical Specifications
Waveform Type Sine wave, square wave, triangular wave, half wave, full wave, sawtooth wave, DC
Frequency Range 0Hz~20MHz
Output Channel 1
Output Amplitude 0.1V~3.0V
Minimum Resolution 1Hz
Square Wave Duty Cycle 1%-99%
Oscilloscope Technical Specifications
Characteristic Description
Broadband 50MHz Dual channel real time sampling
Sampling Sampling Method Real time sampling
Real Time Sampling Rate 250MSa/s
Number of Channels 2 Dual channel AC and DC
Input Input Coupling AC, DC
Input Impedance 1MΩ at 16pF
Probe Attenuation X1, X 10
Maximum Input Voltage X1 range
How to Use:
Follow the instructions manual after taking out the product.
Package List:
1 x Oscilloscope Multimeter Signal Generator
2 x Multimeter Probes
1 x Crocodile Clip Probe
1 x Oscilloscope Probe
1 x Adapter Probe Accessories Pack
1 x Charging Cable
1 x Storage Bag
2 x Instruction Manual
