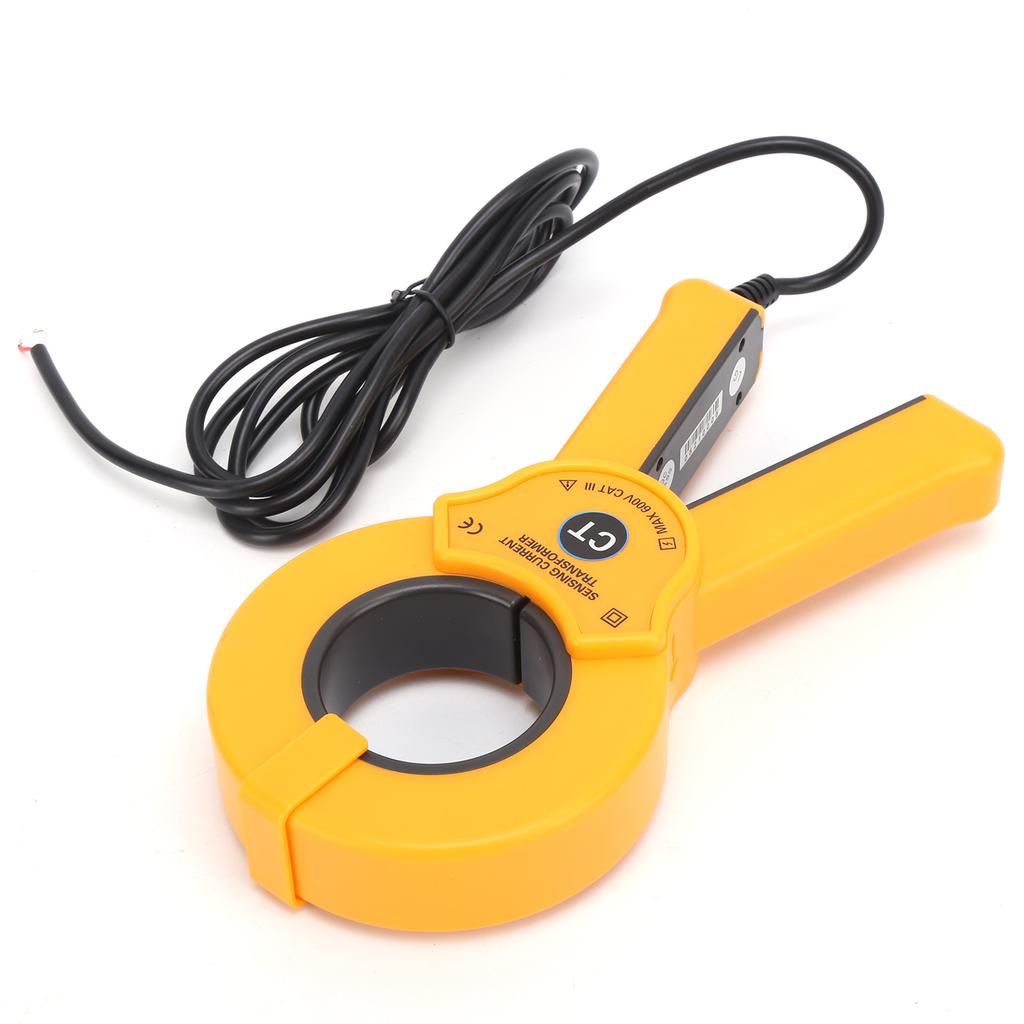

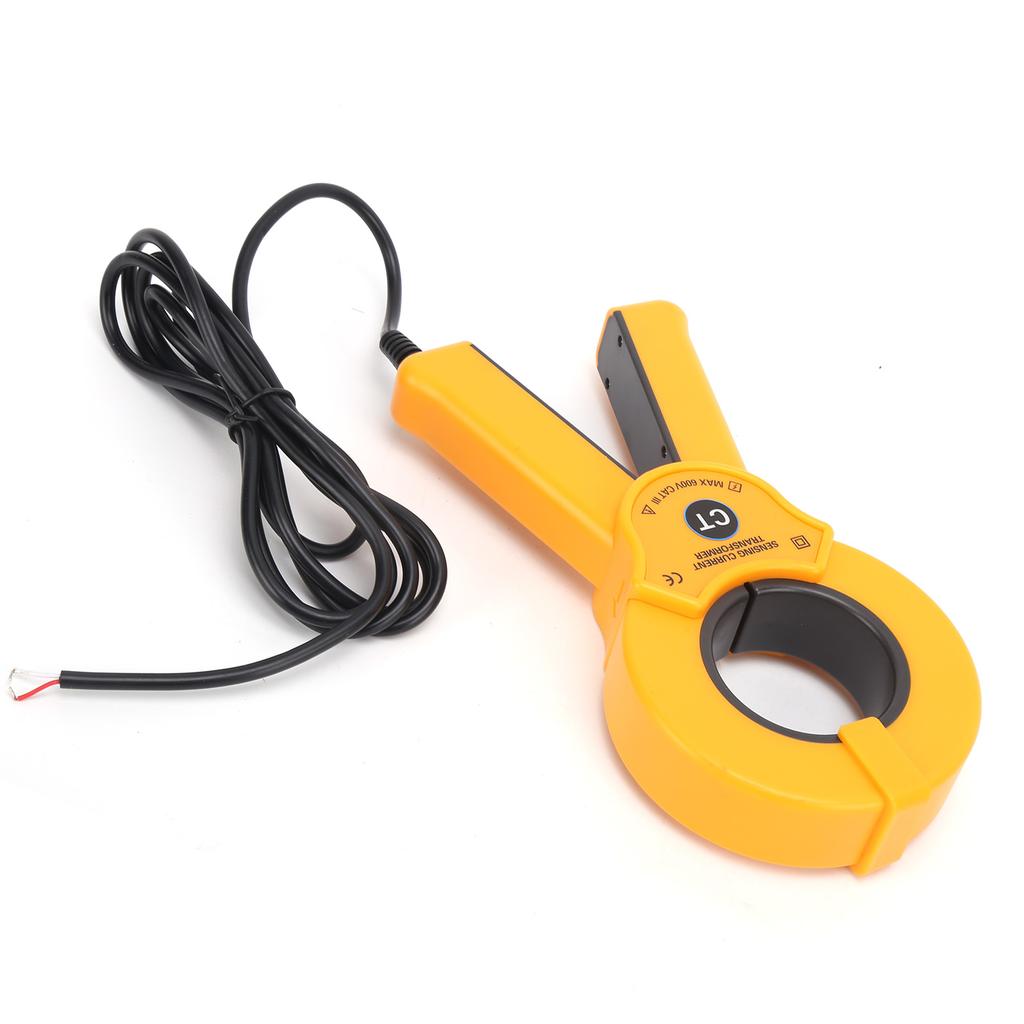

ETCR050 Clamp Current Sensor R Type Clamp Current Transformer with Permalloy Core 40Hz 1kHz for Power Distribution Room

Feature: 1. Clamp shaped structure, no need to disconnect the line under test, making the measurement safer and more efficient 2. Equipped with permalloy iron core, the error is smaller and more accurate when testing large current 3. Using CT technology, circular large Diameter structure design, easy installation, small size, easy to carry and use. 4. Made of high quality ABS material, RoHS certification, green and environmentally friendly 5. It is a high accuracy AC current transformer, which can be used for industrial electricity and electricity metering detection Specification: Item Type: Clamp Current Sensor.Material: ABS + PermalloyUses: AC current, high order harmonic current, phase, electric energy, power, power factor and other industrial electricity and electricity metering detection. Industrial control device, oscilloscope, harmonic analyzer, path meter, double clamp ground resistance tester, cable fault tester, power quality analyzer. Transformer Model Input Current Output Signal Frequency Secondary Load Accuracy Class ETCR050 0mA 300A 100mA 10Hz 100kHz 0 10A less than 500 Ohm 0.5 0mA 400A 200mA 0 100A less than 50 Ohm 0.5 0mA 600A 600mA 0 1000A less than 5 Ohm 0.5 1A 600A 1mV A

more than 100k Ohm 1 Input Current Range: 0mA 1000A; output signal: mA A; mV A. Permalloy iron core, more accurate for testing large current Jaw Size: φ50mm. Safety Grade: CAT 600V. Environmental Protection: RoHS. Working Temperature: 15 degrees C 60 degrees C Package List: 1 x Clamp Current Sensor
