TC64 Color Ccreen PD Fast Charge Detection Type-C Voltage Current Meter Tester

TC64 Color Ccreen PD Fast Charge Detection Type-C Voltage Current Meter Tester

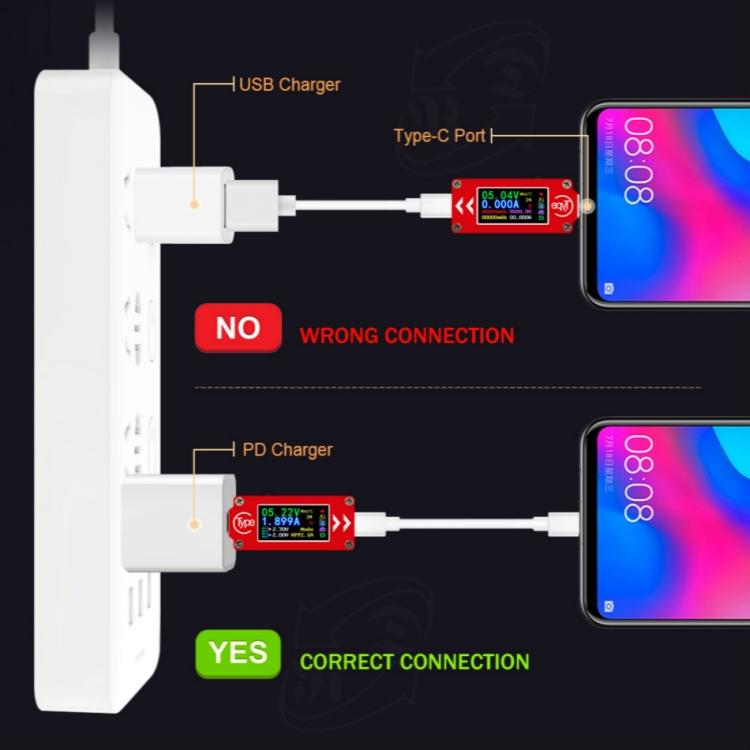

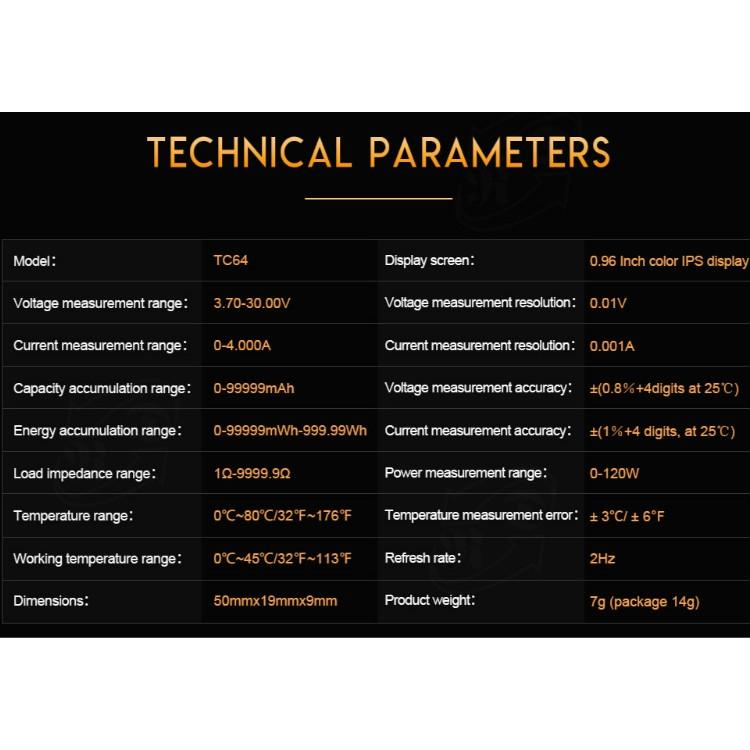

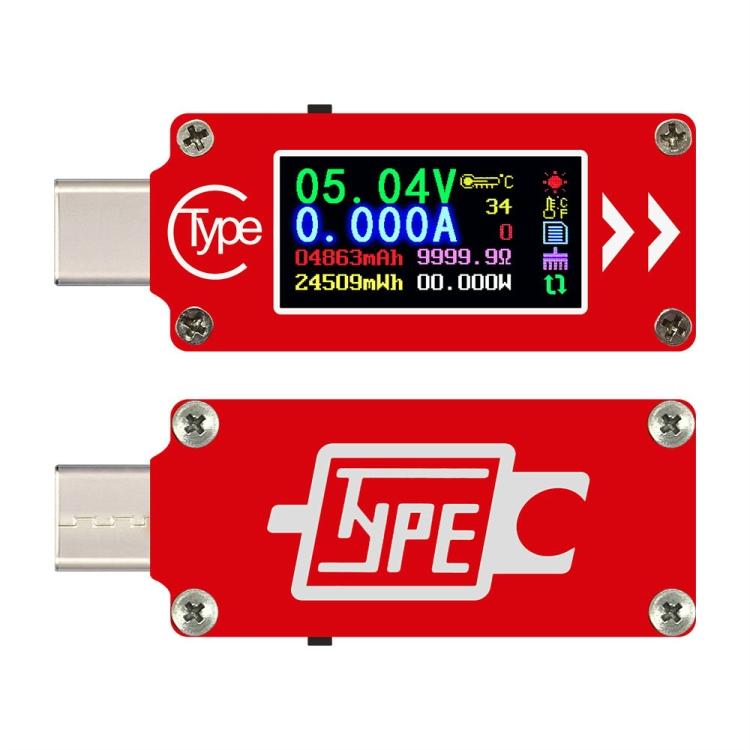

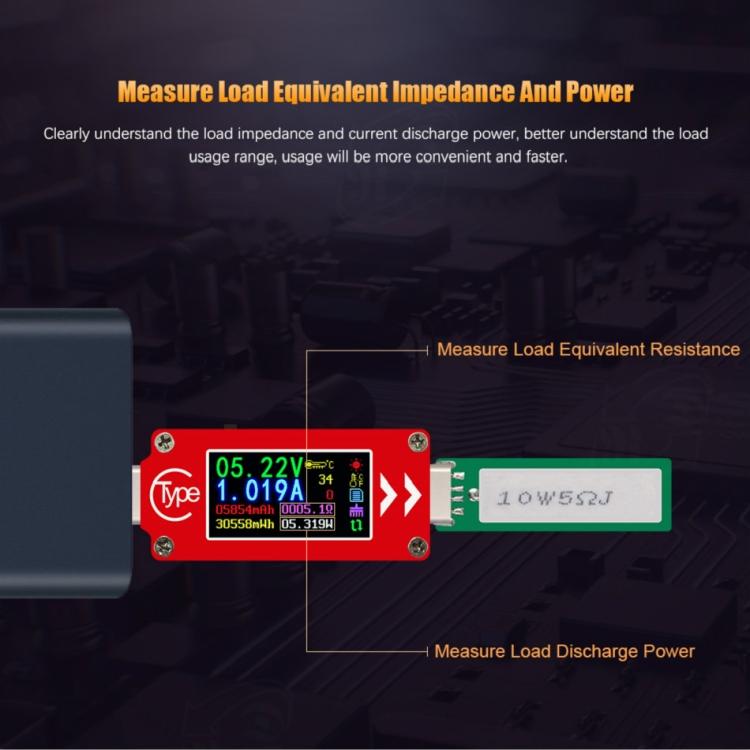

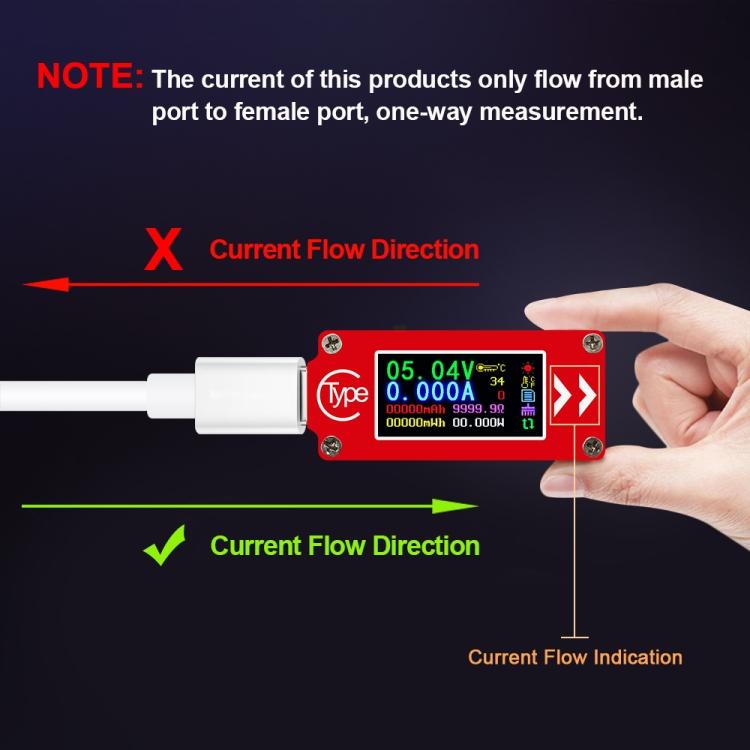

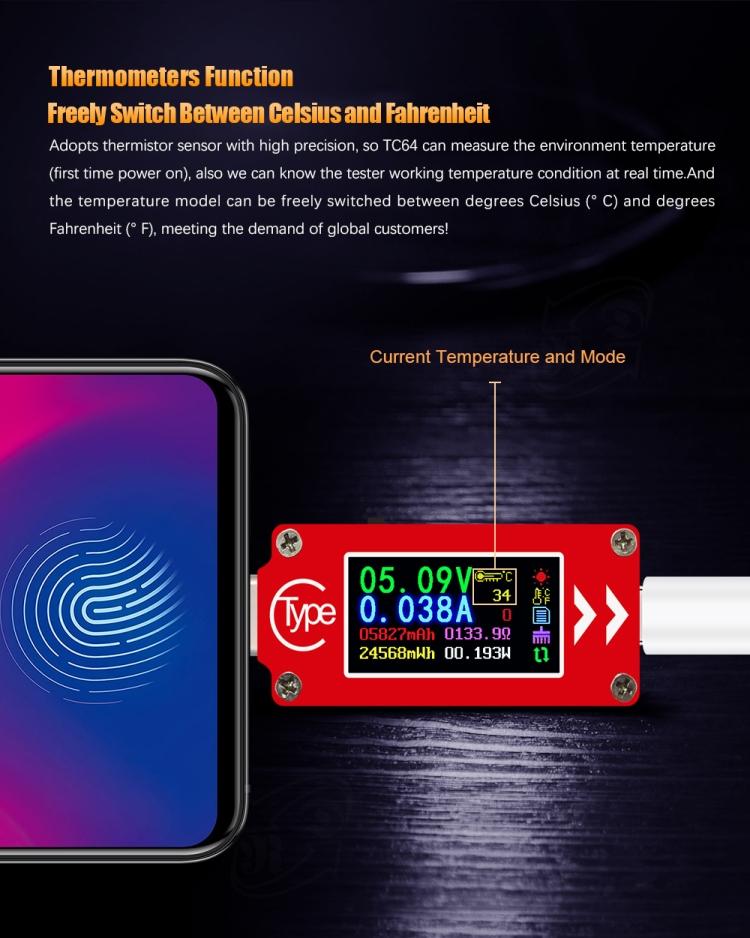

1. Display: 0.96 inch color LCD display 2. Voltage measurement range: 3.70-30.00V, voltage measurement resolution: 0.01V 3. Current measurement range: 0-4.000, current measurement resolution: 0.001A 4. Capacity accumulation range: 0-99999mAh 5. Voltage measurement accuracy: - /+ (0.8% + 4 digits at 25 degrees Celsius) 6. Energy accumulation range: 0-99999mWh 999.99Wh current 7. 7. Measurement accuracy: - /+ (1% + 4 digits, at 25 degrees Celsius) 8. Load impedance range: 1Ω-9999.9ohm 9. Power measurement range: 0-120W 10. Temperature range: -0 ~ 80 degrees Celsius 11. Temperature measurement error: +/- 3 degrees Celsius 12. Operating temperature range: 0 ~ 45 degrees Celsius 13. Product size: 50mmx19mmx9mm 14. Refresh rate: 2Hz 15. Product weight: 7g (with packaging 14g) 16. Fast charging recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, SAMSUNG 17. Note: - The product current only flows from the male connector to the female connector (unidirectional current), the reverse current is still charged, but the current is displayed as 0. Please note when using. - If you use our TC64 meter to connect to the phone, you must have a PD charger or a converter cable. - Type-C port is a full-featured port, supports Type-C fast charging, supports almost all Type-C devices, but does not support Type-C identity resistance (no Type-C trigger)
