Ensure professional-quality printing with the TP-Link Omada 7 Max - BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point. Designed to meet the highest standards of reliability, this printing supply provides crisp, clear, and consistent results for all your document and photo needs. Whether you are printing high-volume reports in the office or vibrant images at home, this product delivers exceptional output on every page.
This high-yield unit is engineered for flawless compatibility with your system, minimizing downtime and maximizing productivity. Formulated to resist fading and smudging, it ensures long-lasting documents that look professional for years. Experience seamless installation and consistent page yields, making it a cost-effective solution for everyday tasks.

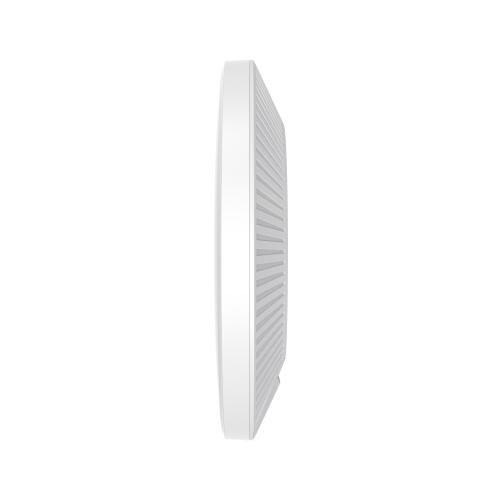

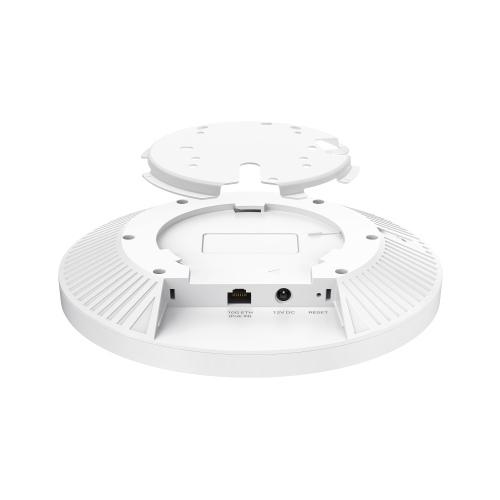

EAP787 Omada 7 Max - BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance (AFC enabled via firmware update, planned for April, 2026).# Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.† 1× 10G Port: Ensures fast connectivity throughout the network HARDWARE FEATURES Interface 1× 10G/2.5G Ethernet Port Button Reset Power Supply 802.3bt/at PoE 12V/2.5A DC Max. Power Consumption 29 W (For PoE); 24.5W (For DC) Dimensions ( W x D x H ) 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) Antenna 2.4 GHz: 2× 4.0 dBi 5 GHz: 4× 5.0 dBi 6 GHz: 2× 5.0 dBi Bluetooth 1 × 5 dBi (peak gain), Internal antenna module Firmware update may be required. Mounting Ceiling / Wall / Junction Box Mounting (Kits Included) MANAGEMENT FEATURES Omada App Yes Centralized Management Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes Web-based Management Yes WIRELESS FEATURES Coverage 2050 ft² (190 m²) Concurrent Clients 510+ Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Frequency 6 GHz, 5 GHz, and 2.4 GHz Signal Rate 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† Wireless Functions 320 MHz Bandwidth‡ MLO‡ 4K-QAM‡ Multi-RUs‡ Seamless Roaming(802.11k/v/r) MU-MIMO‡ Mesh△ BSS Coloring‡ OFDMA‡ Load Balance Band Steering Beamforming Airtime Fairness Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication Wireless Security Captive Portal Authentication△ Access Control Mac Filter Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power 4-25 dBm (2.4 GHz) 7-29 dBm (5 GHz, U-NII-1 & U-NII-3) 7-26 dBm (5 GHz, U-NII-2A) 7-24 dBm (5 GHz, U-NII-2C) 4-23 dBm (6 GHz) OTHERS Certification Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security FCC/CE/NCC/VCCI/JRF/BSMI Package Content EAP787 Installation Guide Ceiling/Wall/Junction Box Mounting Kit Environment §Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above). #AFC availability varies by region or country. For supported areas, please visit: https://www.omadanetworks.com/support/faq/4373/ †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. △Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
Note: Power Adapter is NOT included.
DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Multiple SSIDS: 24(8 on each band)
Operating Temperature: 0 °...
