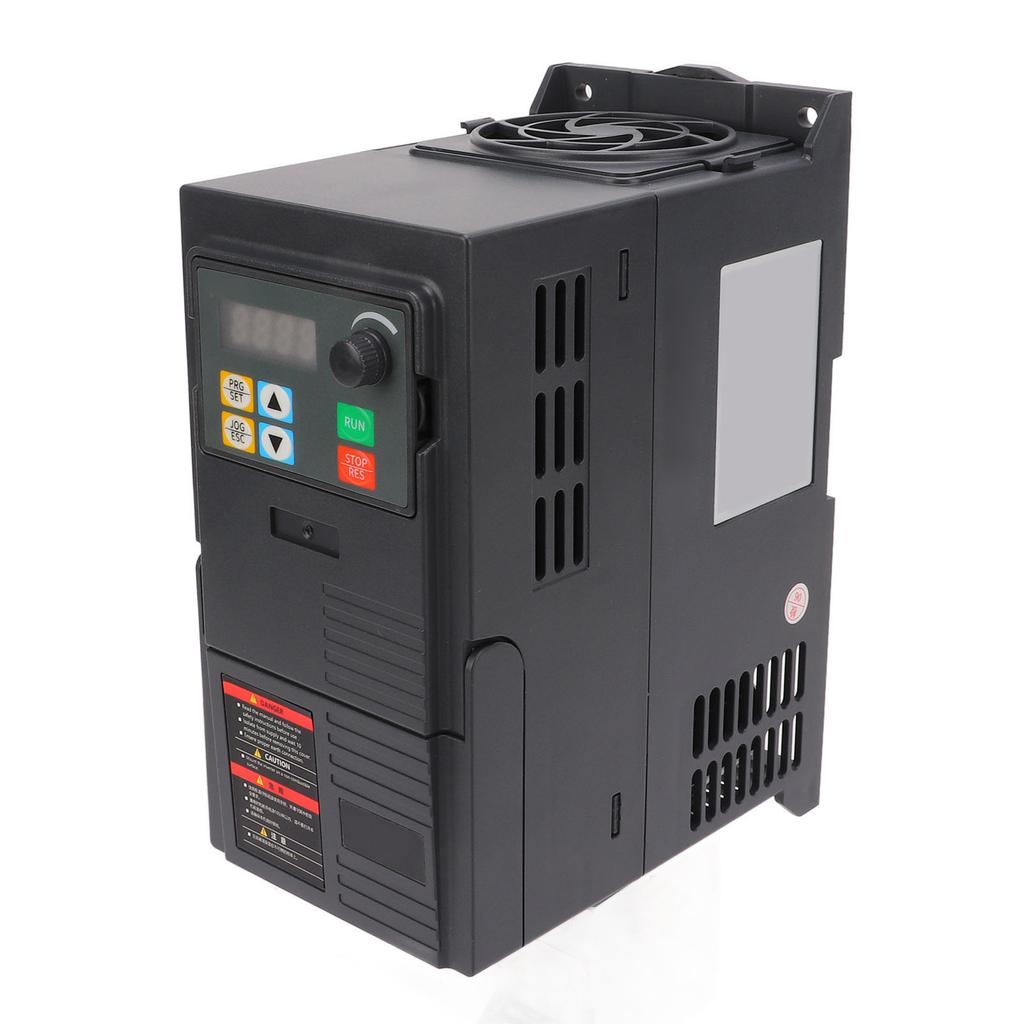

2.2KW Variable Frequency Inverter Drive 3 Phase 380‑440V Input 3 Phase 0‑440V Output Vector Converter

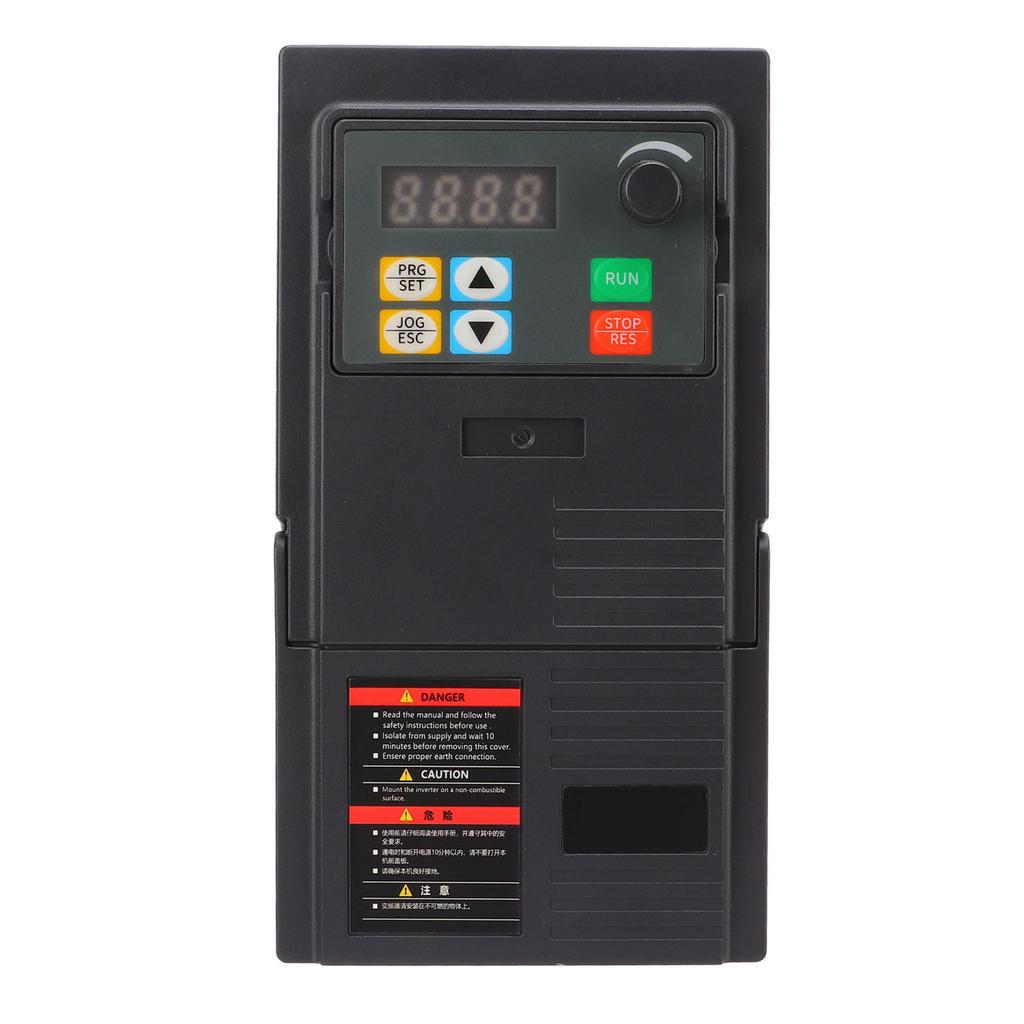

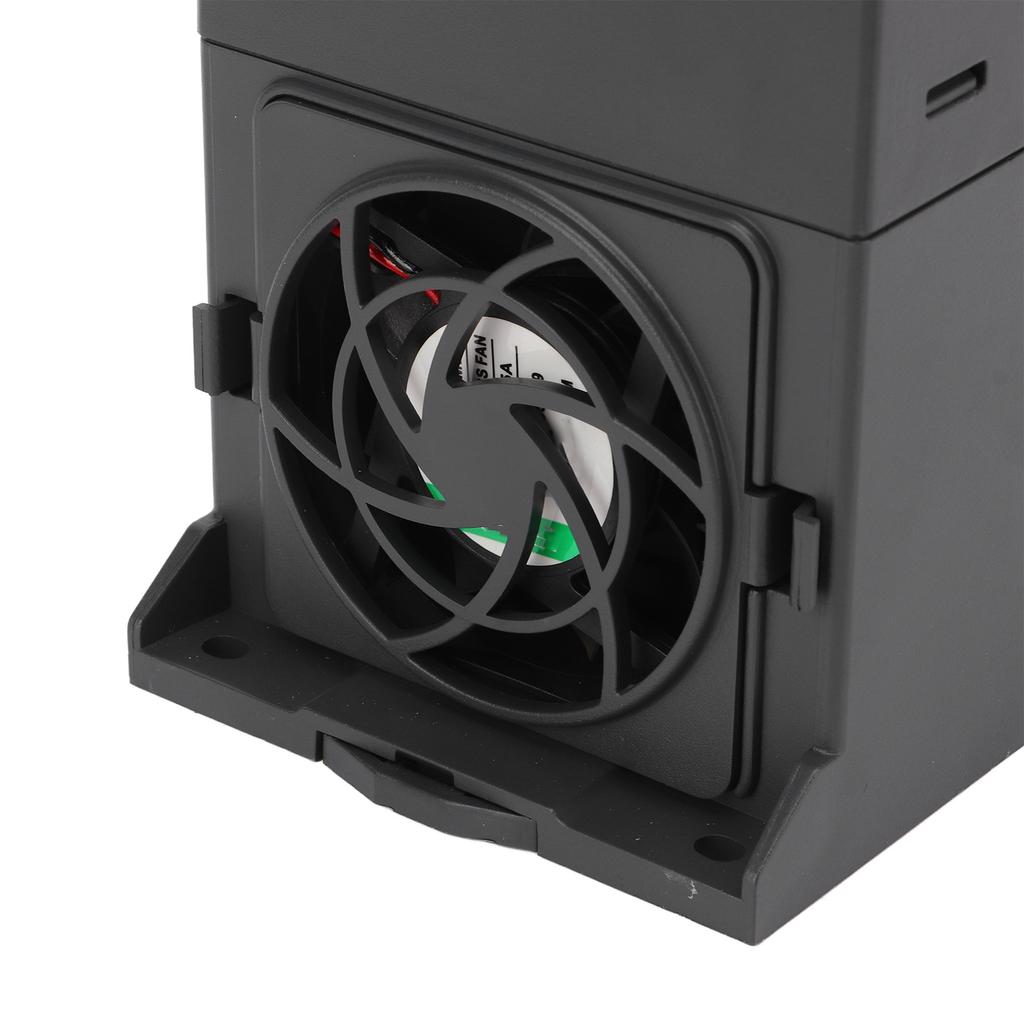

Feature: 1. [3 Phase Input and Output] Our vector inverter is intelligent and efficient, with 3 phase 380‑440V input, 3 phase 0‑440V output, 2.2KW, and 5.1A output current. 2. [RS485 Communication and Digital Display] The inverter has humanized keyboard design, digital display with RS485 communication, and built in braking unit, which can be externally connected with braking resistor for emergency stop brake. 3. [Full Patch Design and Protection] All internal components are designed with patch, increasing the stability of the machine and strong protection performance. 4. [Good Heat Dissipation] Our inverter has a large heat sink with a small fan, and the small fan ensures low noise while assisting good heat dissipation. 5. [Made of ABS Plastic] This vector inverter is made of industrial ABS plastic, high impact resistance, high heat resistance, flame retardant and good overall performance.

Specification: Item Type: Frequency Converter Material: ABS Storage Temperature: -25℃-+55℃ Input Voltage: 3 Phase 380‑440VAC Output Voltage: 3 Phase 0‑440VAC Output Current: 5.1A Braking Resistance: Braking Resistor Power: 300W Braking Resistor Resistance Value: 250Ω

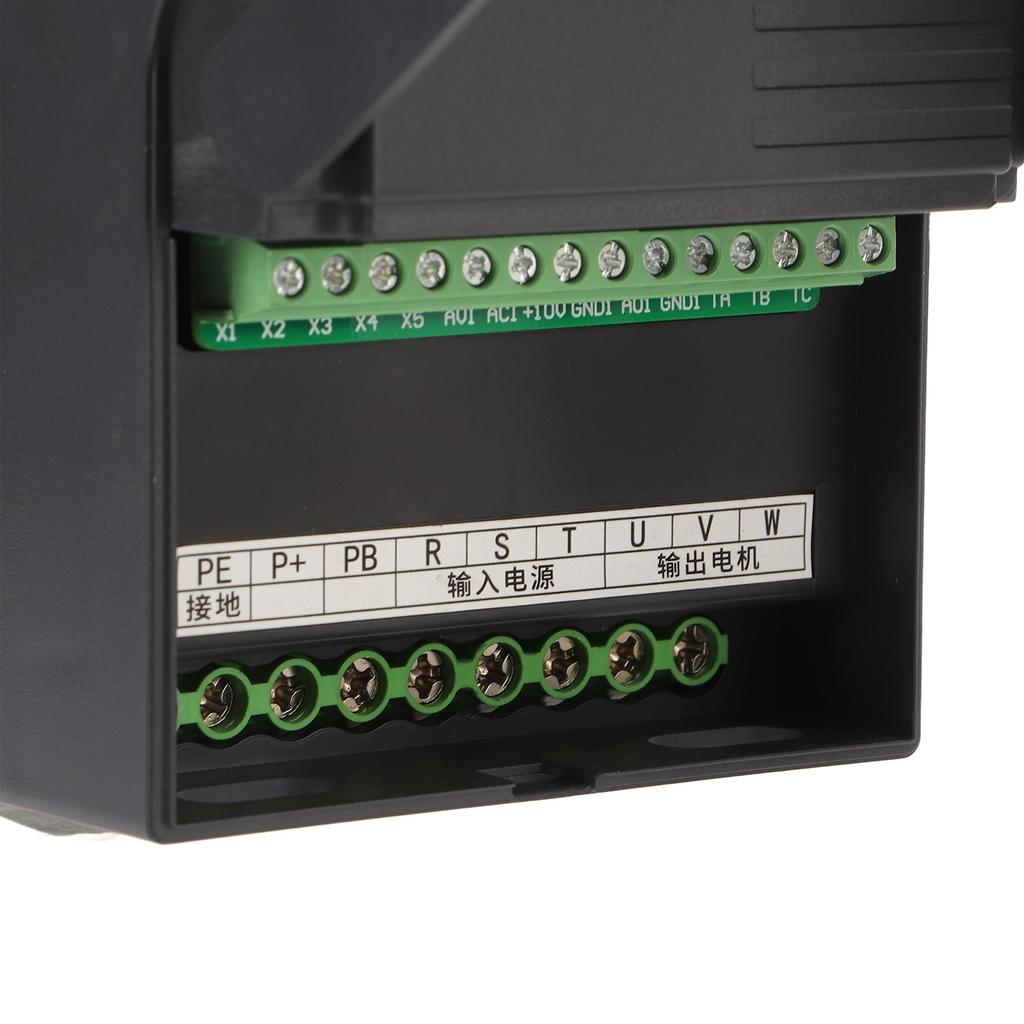

How to Use: 1. Before wiring, make sure that the input power is disconnected. 2. Wiring should be done by professional electrical engineers. 3. Be sure to ground the grounding terminal. 4. After wiring the emergency stop circuit, make sure to check if the operation is effective. 5. Do not connect the output line of the inverter to the housing, and do not short circuit the output line. 6. Make sure that the voltage of the AC main circuit power supply is the same as the rated voltage of the inverter. 7. Do not perform voltage withstand test on the inverter. 8. Connect the braking resistor according to the wiring diagram. 9. Do not connect the power cable to the output U, V, W terminals. 10. Do not connect the contactor to the output circuit. 11. Be sure to install the protective cover before power is applied. When removing the cover, be sure to disconnect the power supply. 12. Keep the inverter with the reset and retry function away from the equipment. It will start again suddenly when the alarm stops. 13. Make sure that the alarm is reset only after the operation signal is cut off. The inverter may start suddenly if the alarm is reset in the running signal state.14. Do not touch the terminals of the inverter as they are dangerous due to the high voltage. 15. Do not change the wiring or disassemble the terminals while the power is on.16. Turn off the main circuit power before inspection and maintenance.17. Do not modify the inverter without permission.

Package List: 1 x Frequency Converter 1 x Instruction Manual
