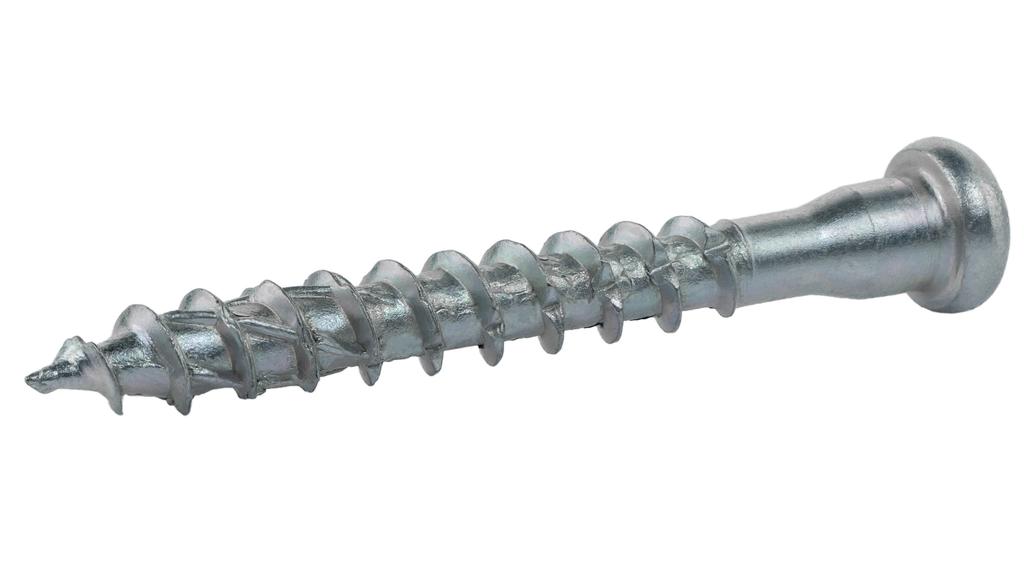

Screws for carpentry connectors with cylinder head and TORX socket
5x30 mm, 250 pcs.
Screws made of white galvanized steel, have an integrated cylinder head for ⌀ 5mm holes.
The screws are primarily used for attaching three-dimensional carpentry connectors to wooden substrates.
The most important parameters
• Model: WKLC-50030
• Size: 5.0x30 mm
• Maximum usable length:5 mm
• Packaging: 250 pcs.
• Socket: TX-20
• Material:carbon steel, galvanized
Original product of the renowned company KLIMAS Wkręt-Met ®
Features and benefits
1. Cylindrical head with TX socket
The deep and stable TORX socket effectively transfers torque without the bit popping out effect, making work more efficient and pleasant.
2. Reinforcement under the head
The enlarged screw diameter under the head increases the screw's shear strength and ensures a perfect fit into holes in carpentry joints. The initially chamfered part under the head ensures trouble-free seating of the screw in the hole.
3. Milling Tip / Cutting Notches
The special shape of the milling tip provides 20% less resistance when screwing, extending the life of the battery and the tools themselves. Cutting notches on the thread cut the fibers of the wood structure during screwing.
4. Double Thread
Additional coils on the tip facilitate screwing - they allow you to "grab" the wood with less pressure.
5. High Torque
Allows you to drive screws without pre-drilling, even in hard types of wood.
6. Wax Coating
Thanks to the special wax coating applied during the manufacturing process, the screwing torque is significantly reduced. This makes installation faster, easier and reduces energy consumption, which is particularly important in battery-powered tools.

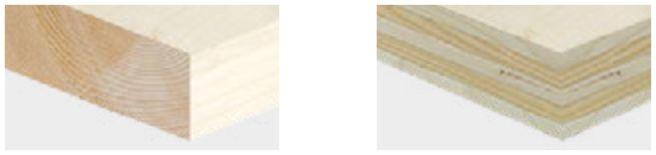

Substrates and sample applications
A. Solid wood
B. Glued solid timber (CLT, KVH, BSH/GLT, LVL)
1. Connecting the wall to the ground using angle brackets with embossing.
2. Connecting the column to the beam using angle brackets with embossing.
3. Connecting the wall batten to the rafters using rafter connectors.
4. Connecting the beams using beam hangers.
These are only example applications.

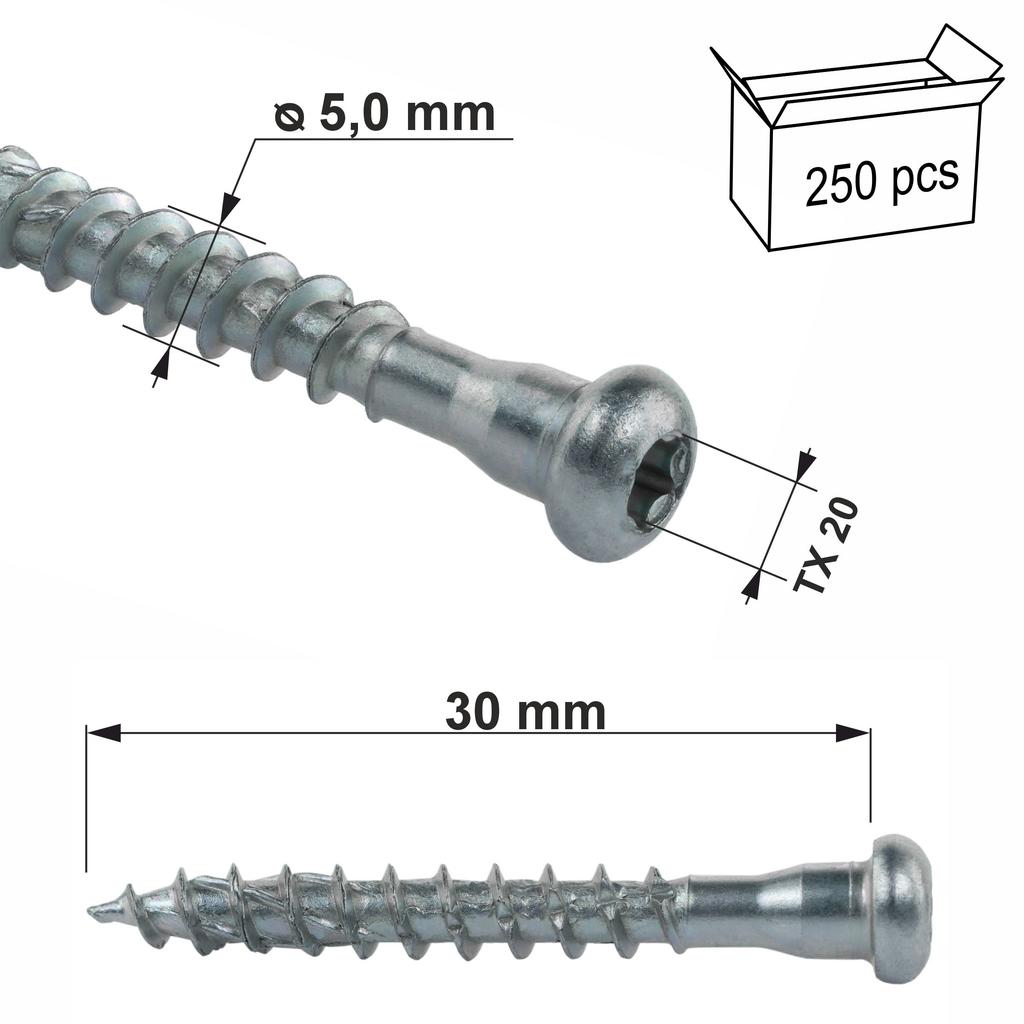

• [ dw ] external thread diameter: Ø 5.0 mm
• [ d1 ] internal thread diameter: Ø 3.3 mm
• [ Dw ] head diameter: Ø 7.4 mm
• [ Ds ] diameter under head: 4.8 mm
• [ Lw ] screw length: 30 mm
• [ Lg ] thread length: 22 mm
• [ t fix ] maximum usable length: 5 mm
• socket: TX-20
• number of pcs. in package: 250
• material: carbon steel, electro-galvanized (zinc layer thickness is minimum 8 μm)
• reaction to fire: Class A1
• European Technical Assessment ETA-18/0817
The screws we offer are characterized by the highest quality and can be use in construction without any worries. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
• Before installation, select the appropriate screw length depending on the thickness of the elements being fastened and the minimum anchorage depth.
• The wooden elements being connected should be free from defects (knots, cracks, discoloration, rot, structural and shape defects, mechanical damage), as this reduces their strength.
• The screws should be installed using a screwdriver and a suitable TX-type bit.

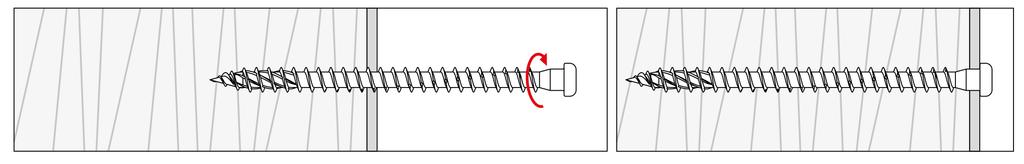

• The screws should be driven directly into the wooden substrate without drilling holes first.
KLIMAS screws - the most common choice of professionals
At our other auctions you will find a full range of screw sizes for carpentry connectors.
• 5x30 mm
• 5x35 mm
• 5x40 mm
• 5x50 mm
• 5x60 mm
• 5x70 mm

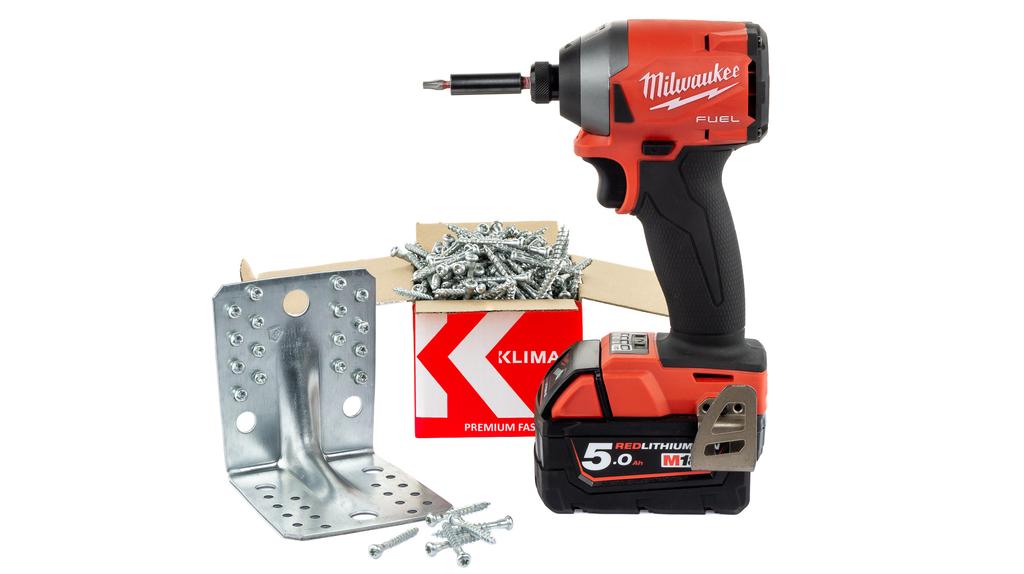

*The measuring tape and screwdriver are not included in the auction (they are only used for better presentation of the screws)
