Full thread countersunk head screws WKFS-08180 (50)

Construction and reinforcement wood screws with countersunk head and Torx socket

Screws designed for structural connections and reinforcement of wooden elements. Full thread ensures optimal connection of connected elements "without pulling". The countersunk head allows the screw to sink into the fastened element.

• Model: WKFS-08180-B-(50)OP

• Size: 8 x 180 mm

• Packaging: 50 pcs.

• Socket: TX-40

• Material: galvanized carbon steel

Original Product of the Renowned Company KLIMAS Wkręt-Met ®

Features and benefits

1. Countersunk Head with TX Socket

Allows the screw to penetrate the fastened element. The TX socket guarantees optimal torque transfer.

2. Full Thread

Ensures optimal connection of the connected elements "without pulling"

3. Countersinking Cutter

Reduces the torque required for screwing by widening the hole in the fastened element.

4. Wax Coating

Thanks to the special wax coating applied during the manufacturing process, the screwing torque is significantly reduced.

5. Double Thread

Additional threads on the tip facilitate screwing - they allow for faster "gripping" of the wood with less pressure.

6. Milling Tip/Cutting Notches

Special milling tip shape provides up to 20% less resistance when screwing, extending the life of the battery and the tools themselves. Cutting notches on the thread cut through the wood fibers when screwing.

7. High torque

Allows you to drive screws without pre-drilling into hard woods.

1. Solid wood,

2. Glued solid wood (CLT,KVH,BSH/GLT)

3. Laminated laminated wood (LVL)

1. Reinforcement with screws in the ridge zone,

2. protection against cracking of a beam with a notch,

3. strengthening at the support point,

4. strengthening by adding a second beam,

5. strengthening a beam in a weakened area with a hole,

6. connecting two girders,

7. connecting two passing beams.

These are only example applications. WKFS screws are used for structural connections and reinforcing wooden elements.

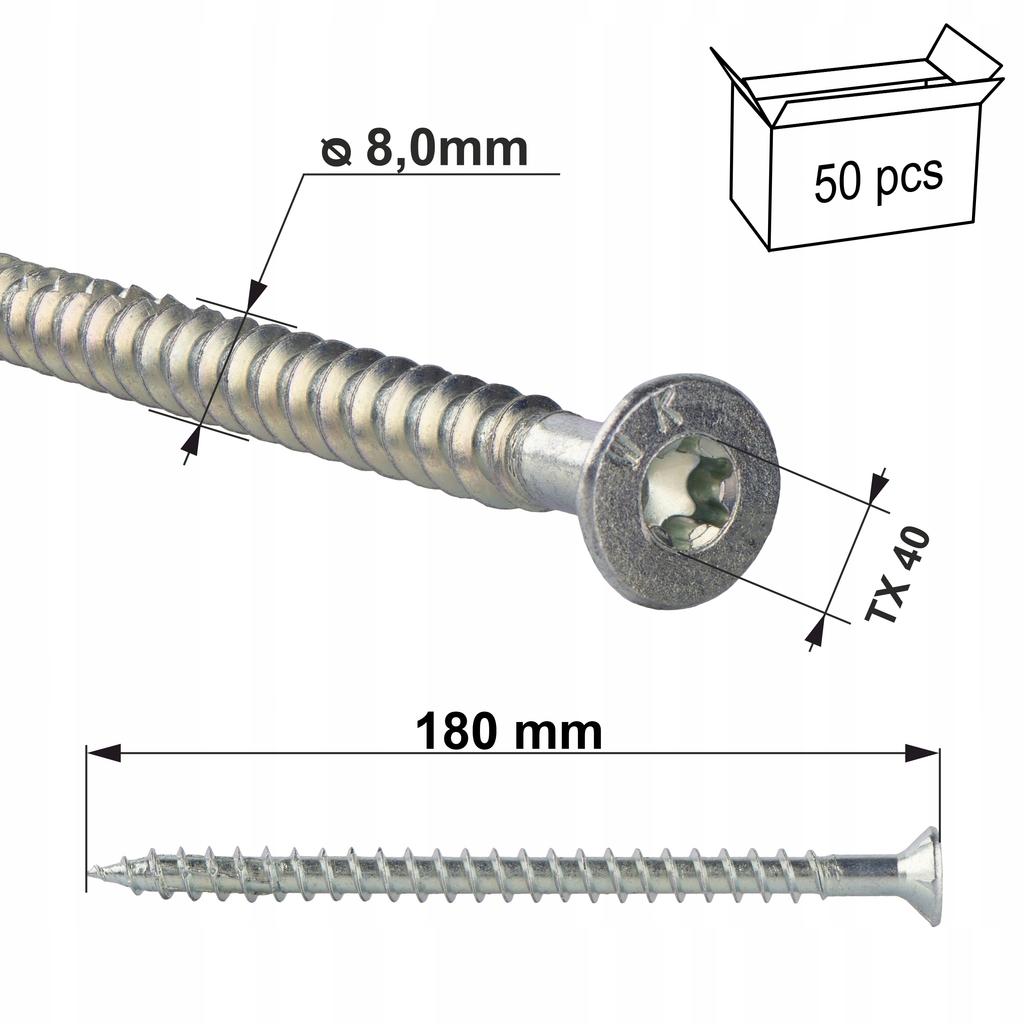

• [ dw ] external thread diameter: Ø 8.0 mm

• [ d1 ] internal thread diameter: Ø 4.95 mm

• [ Dw ] head diameter: Ø 14 mm

• [ Lw ] screw length: 180 mm

• [ Lg ] minimum thread length: 168 mm

• Socket: TX-40

• Quantity in package: 50 pcs.

• European Certificate ETA-18/0817 07/06/2023 - a guarantee of the highest quality. This European Standard specifies requirements and test methods for the materials, geometry, strength, stiffness and durability (i.e. corrosion protection) of fasteners used in load-bearing timber structures.

The screws we offer are of the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

The screws do not require pre-drilling.

However, in the case of long screws, it is worth pre-drilling.

• This makes it easier to insert the screw when screwing in,

• reduces stress in the wood,

• allows for screwing closer to the edge of the beam,

• loads less tool.

Drill with a smaller diameter screw. For screws with a diameter of 8 mm, we recommend using a 5 mm drill bit.

(copy link and paste into browser window)

• https://youtu.be/RIBtckNxD9Q

KLIMAS screws - the most common choice of professionals

You will find a full range of screw sizes in our other auctions.

*the measuring tape is not part of the auction (it is only used for a better presentation of the screws)

Size: (8x180 mm), Packaging: (50 pcs.) Model: WKFS
