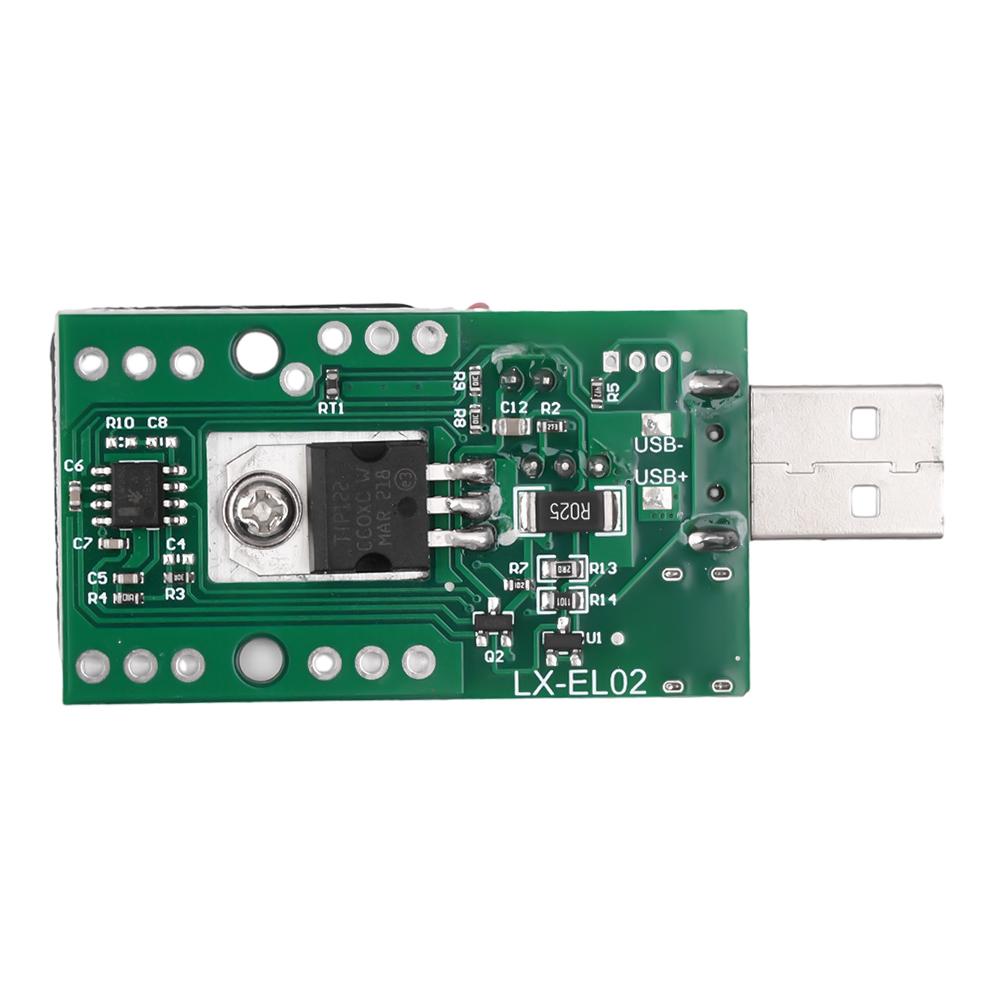

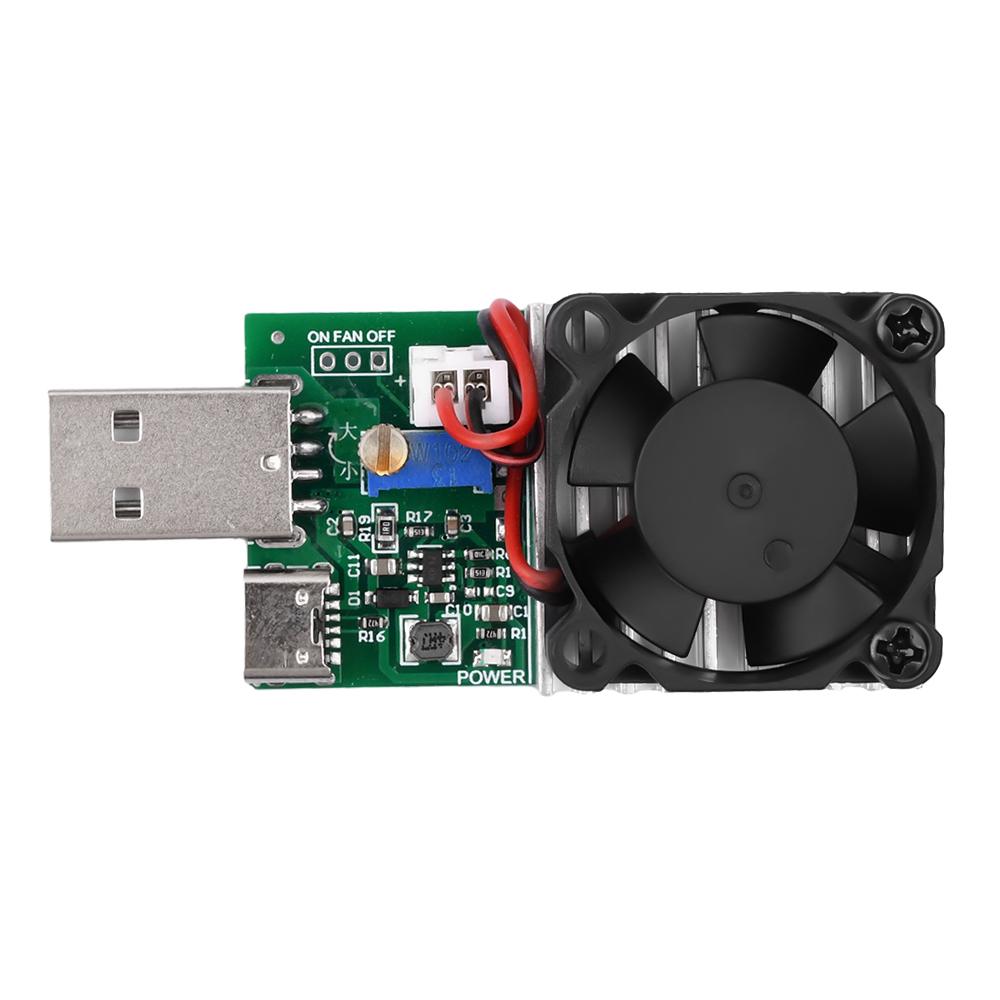

18W /22.5W Electronic Test Load Resistor USB Battery Discharge Capacity Tester with Fan Adjustable Current Module

Quantity : 1 High-concerned chemical : none Package : TQFP Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : Electronic Test Load Resistor Key Word : Electronic Tester Sup : Support

18W /22.5W Electronic Test Load Resistor USB Battery Discharge Capacity Tester with Fan Adjustable Current Module Feature : 1. USB and Type-c input interfaces are optional, and the Type-c port can pass a larger current. 2. All-aluminum fan heat plate + intelligent temperature control fan, good heat dissipation effect. 3. It has a stable discharge current, and the constant current can be adjusted from 0.15 to 3A. 4. Current adjustment knob, clockwise to increase the current, counterclockwise to reduce the current. 5. Suitable for long-term discharge or factory aging test of products.

Product parameters: Input voltage range: 3.7V~13V Input current range: 0.15A~3A, knob adjustment Input interface: USB/Type-c interface, or self-welding wire Heating method: all-aluminum fan heat plate + intelligent temperature control fan Output power: 18W and 22.5W (optional) Product size: 68*29*23mm (length, width and height)

Package list: Electronic load Tester *1 label:yes
