DC 5~12V RC Drone FPV 2/3-Channel Video Switching Control Module Video Auto-Switching Control Board PWM Signal Control

High-concerned chemical : none Communication method : Other Model Number : DC 5-12V 2/3 Channel Video Switcher Module Brand Name : occkic Origin : Mainland China Certification : NONE 1 : DC 5-12V 2/3 Channel Video Switcher Module 2 : 2/3 Way Video Switch Compatibale With RC Camera 3 : For FPV Drone UAV Accessories

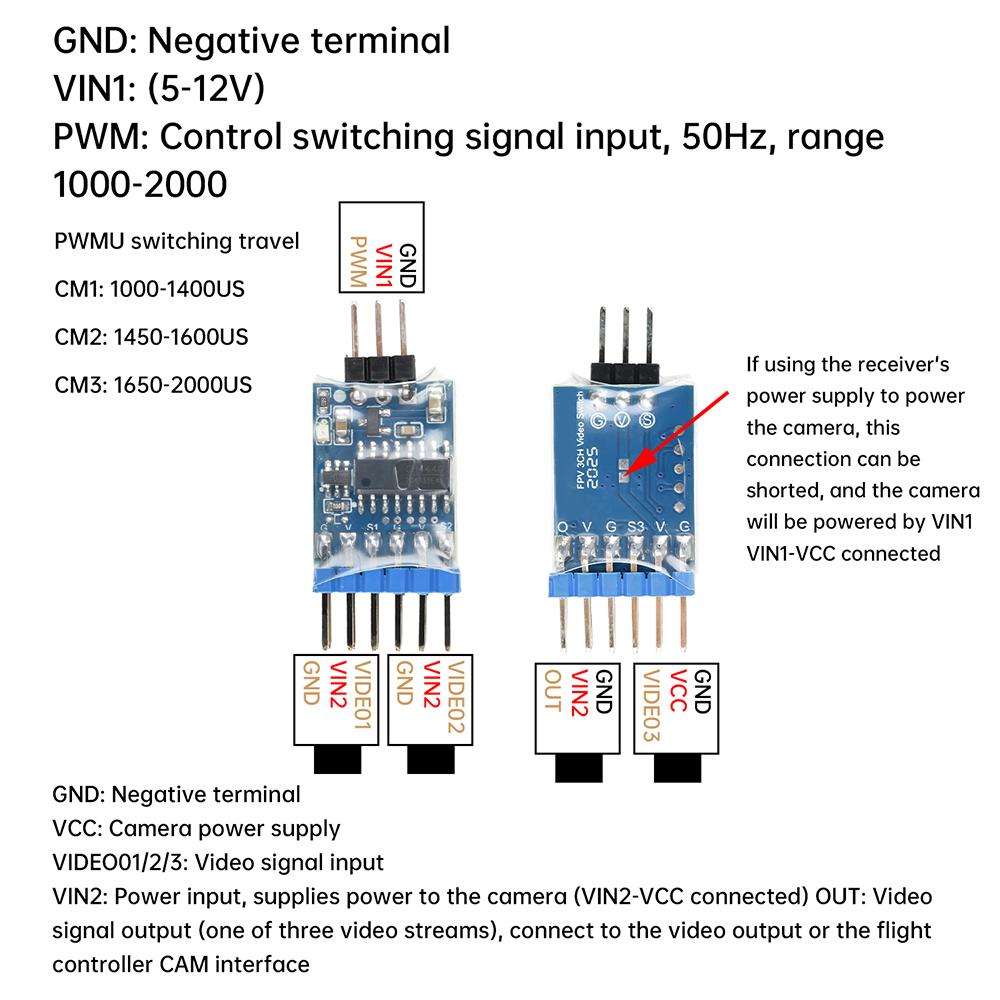

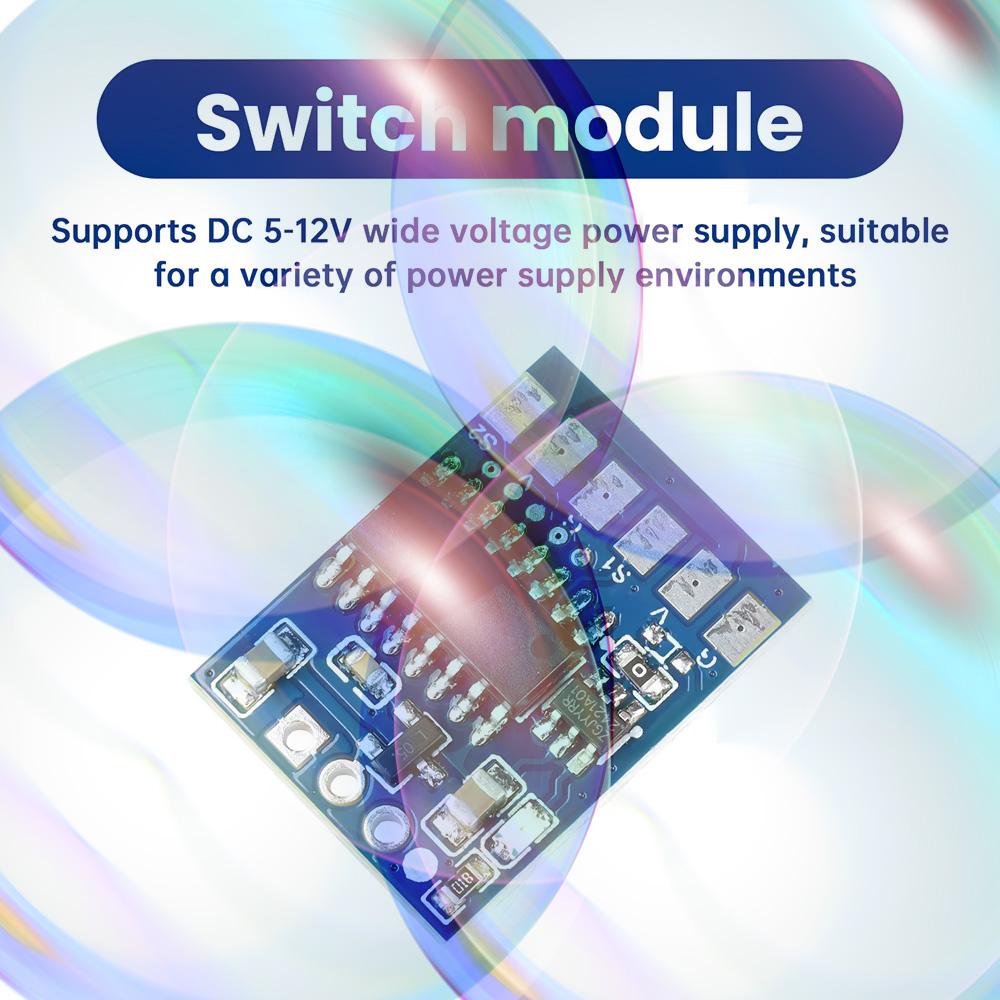

Features: 1. Supports DC 5-12V wide voltage supply, suitable for various power environments. 2. Supports switching between 2/3 video inputs, supports FPV applications, and has stable and reliable performance. 3. The control signal is PWM, accurately achieving video switching function. 4. Compact size, easy to install and integrate. 5. Screen printing is intuitive, clear, and easy to use.Parameter: Control signal: PWM Power supply range: 5-12V (supports higher than the receiver) IN1:1000us ± 200 LED flash IN2: 1500us ± 200 LED flashing IN3: 2000us ± 200 LED slow flashing Size: 20 * 15mm (excluding needle size) Pin Description: GND: Negative pole VIN1: Module power supply (5-12V) PWM: Control switching signal input, 50Hz 1000-2000 range PWM switching stroke CM1:1000-1400US CM2:1450-1600US CM3:1650-2000US GND: Negative pole VCC: Camera power supply VIDEO1/2/3: Video signal input VIN2: Power input, supplying power to the camera VIN2-VCC conduction OUT: Video signal output (one of the three channels for image transmission), connected to video or flight control CAM interface Package Include: 1X module label:yes
