Feature:

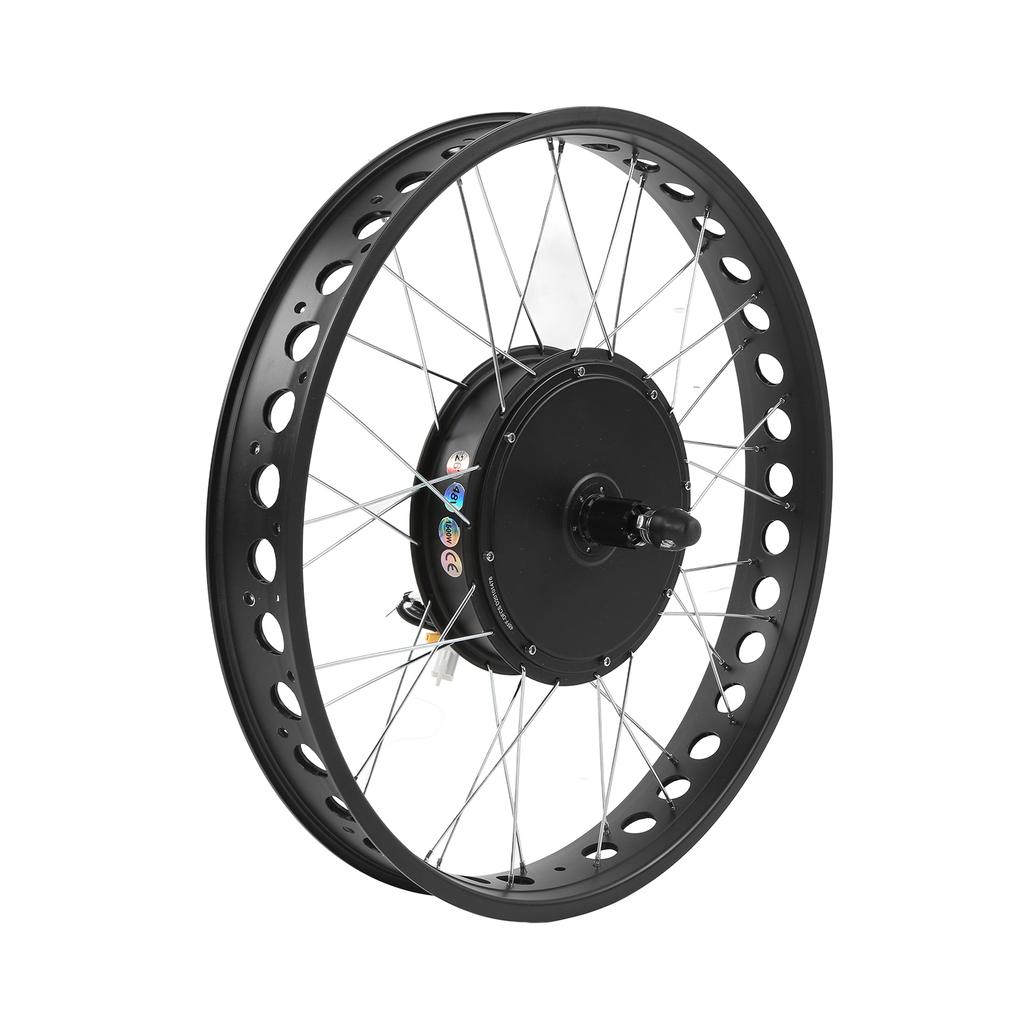

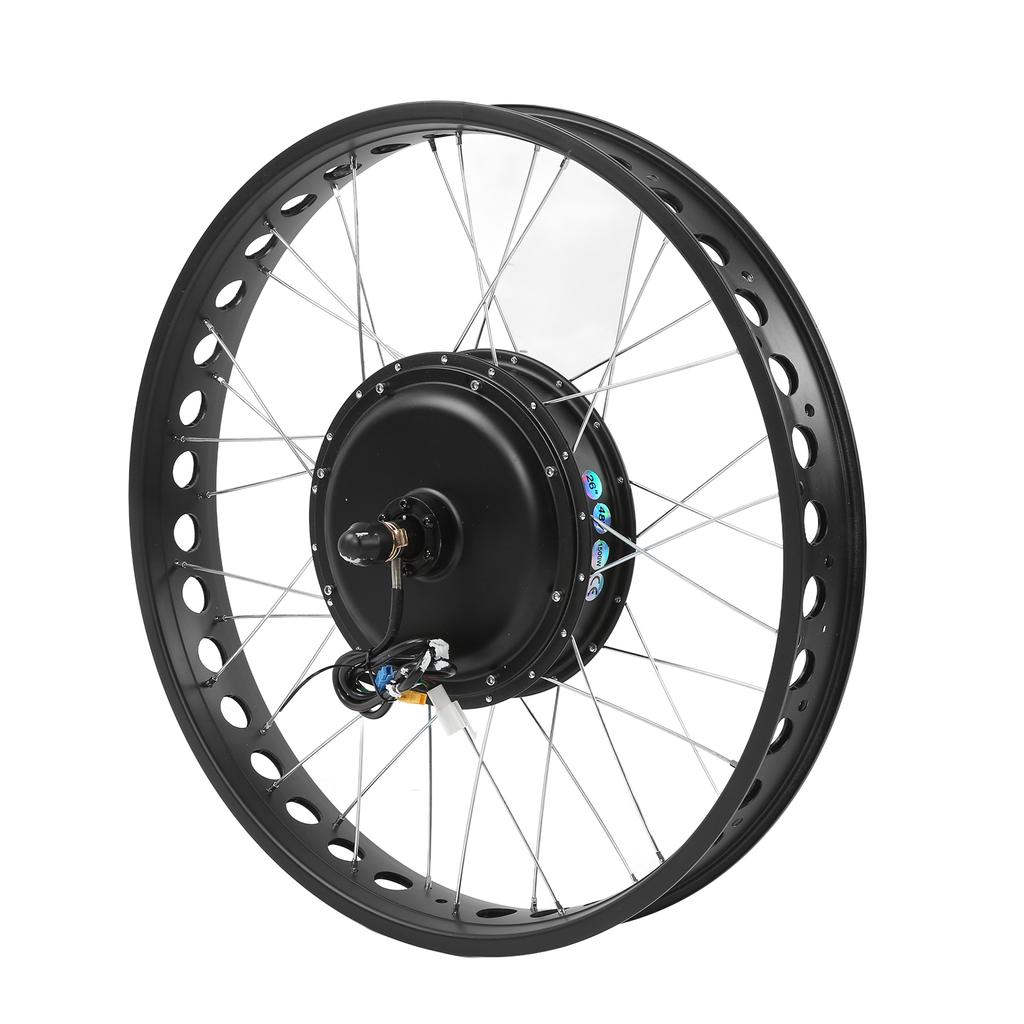

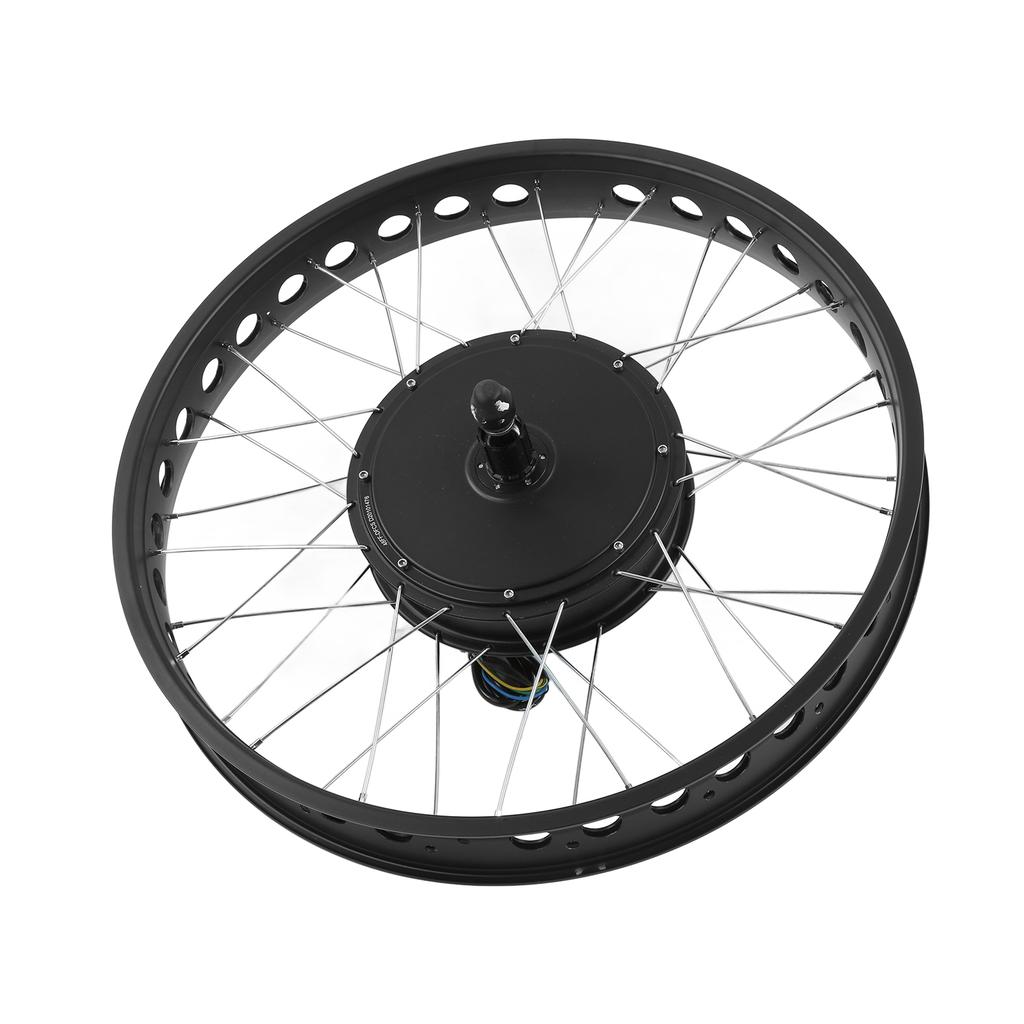

1. Aluminum Wheel: Aluminum alloy wheel rim is processed by fine technology to effectively enhance the edge of the wheel rim, making it light and high end, with strong bearing capacity and comfort.
2. Sensitive Control, Long Use: Brushless motor controller provides steady speed and sensitive braking and directional change control. High performance wire and interface durable, to ensure long term use of little failure. Able to improve the fun of riding, suitable for DIY modified for snowmobile ATV SUV.

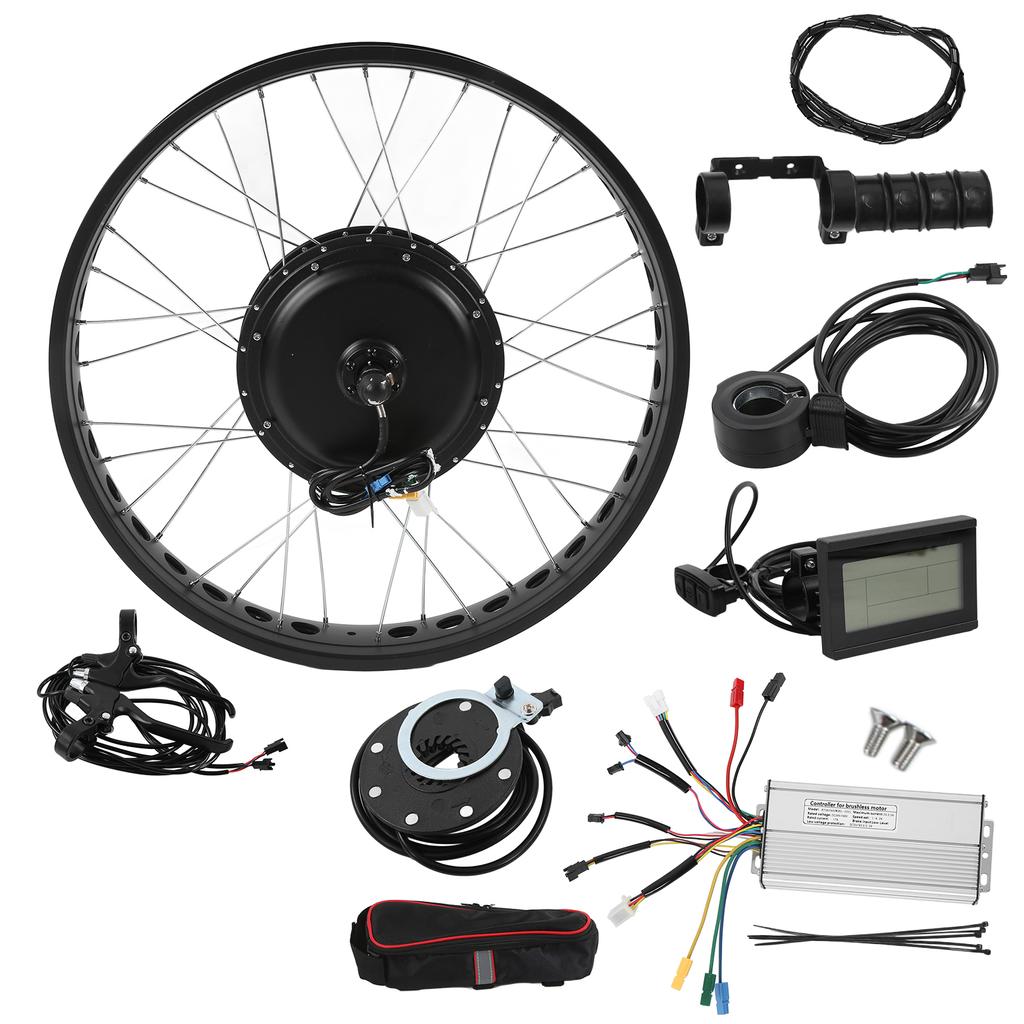

3. Rich Package: There is a rear drive motor wheel, 35A controller, LCD3 panel, a thumb throttle, a 8C speed assist and a pair of power off brake handle included in the rear wheel conversion kit.
4. Heat Dissipation Housing: Controller outer shell is metal material with grooves design, that the case has good heat dissipation function, able to protect the internal circuit and avoid thermal overload.
5. Practical Panel: During riding, the LCD panel will display many useful data, such as power display, battery voltage, backlight display, headlight display, brake display, riding speed, maximum speed, total one way distance, power assist sensor sign, 6KMH thrust assist, cruising function, etc.
Specification:
Item Type: Rear Wheel Conversion Kit
Material: Stainless Steel + Aluminum Alloy + Plastic
Color: As Picture Shown
Application: For Snowmobile, ATV, SUV
Product Size: Controller Box: Approx.193x83x42mm7.6x3.3x1.7in
Weight: Approx.12750g28.1lb
Motor Wheel Suitable Tire Size: 26in
Motor Type: Rear Drive Motor
Motor Voltage: 48V
Motor Power: 1500W
Motor Shift Size: 170mm(6.7in)190mm(7.5in)
Connector Type: Common Connector
Controller Rated Voltage: DC 36V48V
Controller Rated Current: 17A
Controller Maximum Current: 35+2A
Controller Speed Setting: 14.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 3040+0.5V
Brake Type: Disc Brake
Display Instrument Function Description: Up button, switch button, down button, battery capacity indicator, backlight and headlight, brake display, oneway time, total travel time, power display, motor temperature in degrees Celsius, motor temperature in degrees Fahrenheit, ambient temperature in degrees Celsius , Ambient temperature in Fahrenheit, 6kmh thrust assist, riding speed (metric), riding speed (imperial), maximum speed, average speed, distance (metric), distance (imperial), riding distance, total distance, battery voltage , power assist sensor sign, cruise function..
Package List:
1 x Rear Drive Motor Wheel1 x Controller1 x LCD3 Panel1 x Instrument Mounting Bracket4 x Meter Mounting Bracket Washer2 x Instrument Mounting Bracket Screw1 x Instrument Instruction 1 x Thumb Throttle 2 x Power Off Brake Handle 1 x 8C Speed Assist5 x Ties1 x Wired Pipe1 x Controller Kit1 x Controller Wiring Manual
Note:
1. Pay attention to the size of rear drive shift, power and voltage need to be matched to use.2. Please allow 1?3cm errorerrors due to manual measurement. Thanks for your understanding.Aluminum Wheel: Aluminum alloy wheel rim is processed by fine technology to effectively enhance the edge of the wheel rim, making it light and high end, with strong bearing capacity and comfort.
Sensitive Control, Long Use: Brushless motor controller provides steady speed and sensitive braking and directional change control. High performance wire and interface durable, to ensure long term use of little failure. Able to improve the fun of riding,
Rich Package: There is a rear drive motor wheel, 35A controller, LCD3 panel, a thumb throttle, a 8C speed assist and a pair of power off brake handle included in the rear wheel conversion kit.
Heat Dissipation Housing: Controller outer shell is metal material with grooves design, that the case has good heat dissipation function, able to protect the internal circuit and avoid thermal overload.
Practical Panel: During riding, the LCD panel will display many useful data, such as power display, battery voltage, backlight display, headlight display, brake display, riding speed, maximum speed, total one way distance, power assist sensor sign, 6KMH
