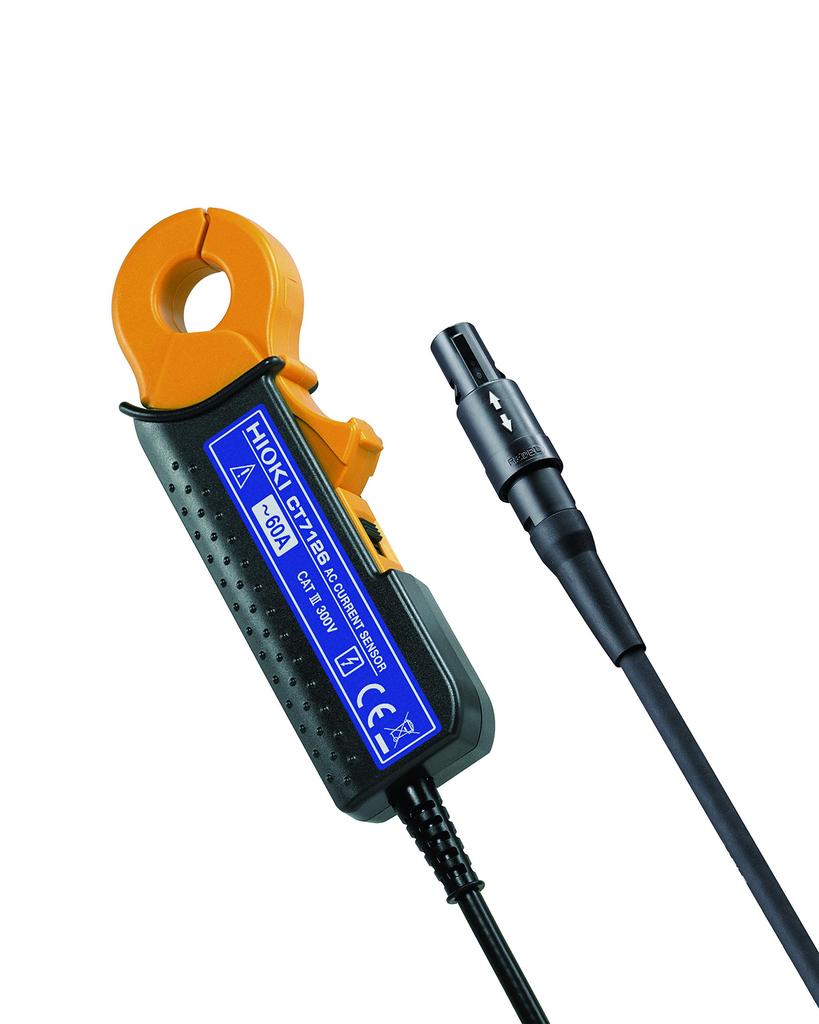

HIOKI CT7126 AC Current Sensor, 60A AC Load Current, for PQ3100, PQ3198, CM7290, and CM7291

Basic Specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) *Waterproofing is intended to maintain measurement functionality. Measuring live electrical components while the instrument is wet increases the risk of electric shock.

Compatible Products: PQ3100, PQ3198, CM7290, CM7291 Rated Measurement Current: 60 A AC Maximum Measurement Current: 60 A (with frequency derating) Maximum Peak Value: 100 A peak Frequency Bandwidth: 40 to 20 kHz When used in combination with the CM7290 or CM7291: 40 Hz to 1 kHz Typical Phase Accuracy: ±2.0 deg. (45°C) Output Rate: 10 mV/A Maximum Rated Voltage to Ground: 300 V AC (CAT III) Measurable Conductor Diameter: φ15 mm or less Output Connector: HIOKI PL14 Operating Temperature Range: -10°C to 50°C Dustproof and Waterproof: IP40 (EN60529) (with sensor connected and jaws closed) Dimensions and Weight: Approx. 46W x 135H x 21D mm, Approximately 190 g, Cable length approximately 2.5 m [Accessories] Instruction manual, Current Sensor Usage Precautions Current Sensor for PQ3100, PQ3198, CM7290, CM7291 Measurement Current: AC60A Measurable Conductor Diameter: φ15 mm or Less
