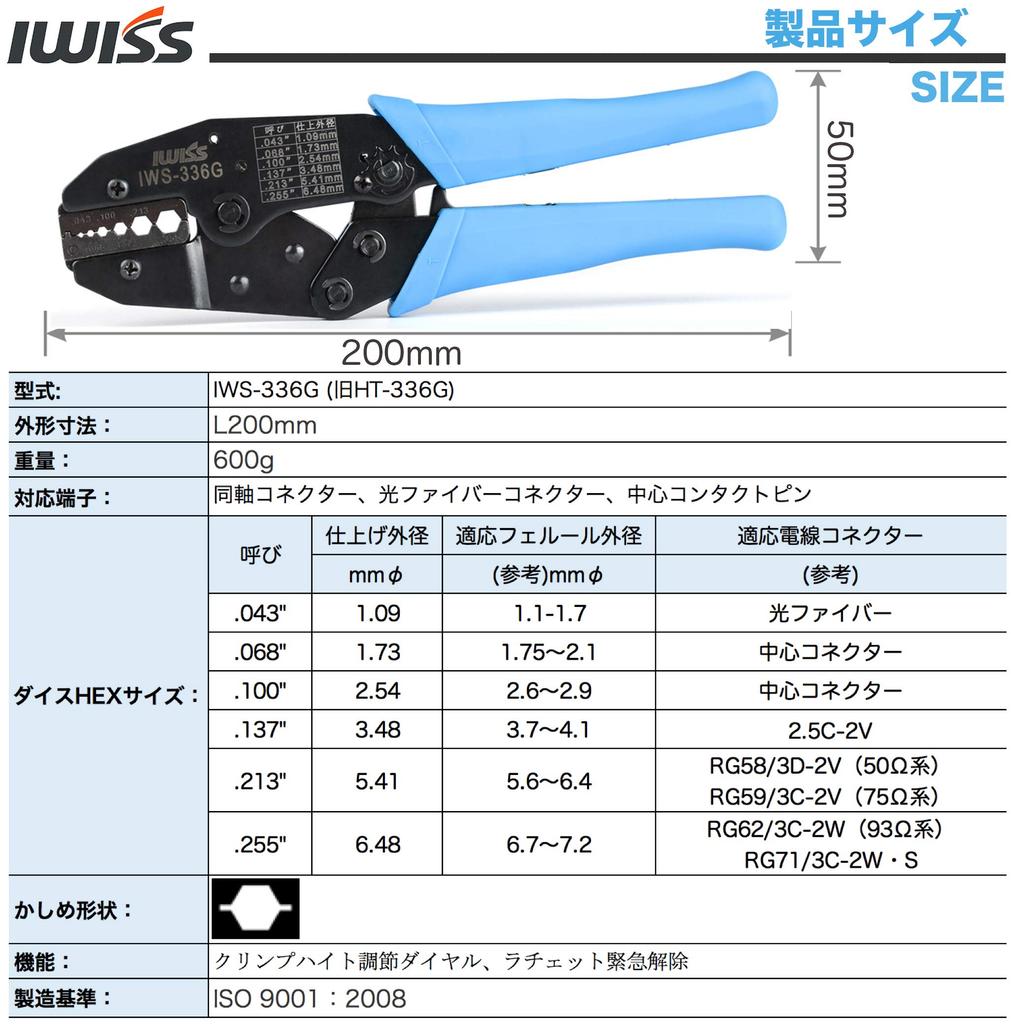

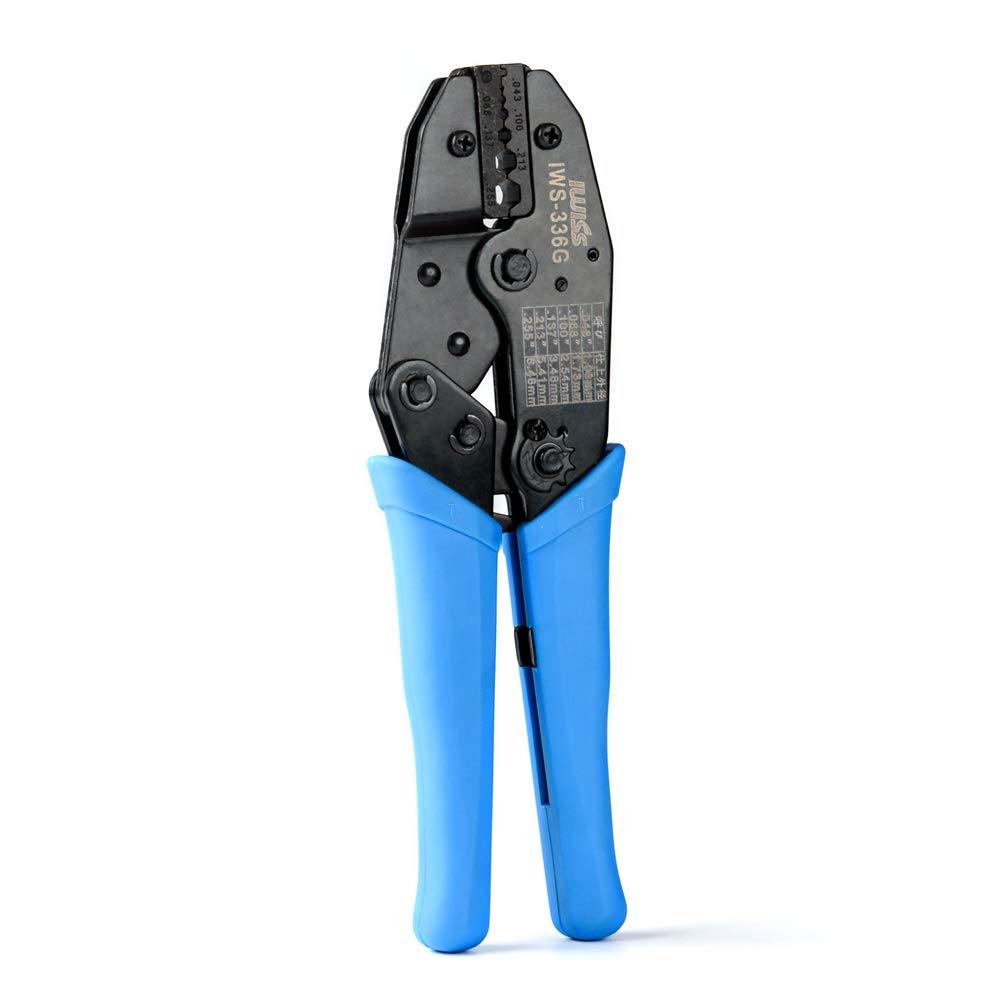

Total length: 200mm; Weight: 600g
Uses: Crimping coaxial connectors, center contacts, and fiber optic connectors
Compatible terminals: ① Coaxial connector (RG58/3D-2V (50Ω system), RG59/3C-2V (75Ω system), RG62/3C-2W (93Ω system), RG71/3C-2W・S, ② Center contact (HEX1.72, HEX2.54), ③ Optical fiber connector
Dice Hex Size: 1.09 / 1.72 / 2.54 / 3.48 / 5.41 / 6.48 mm

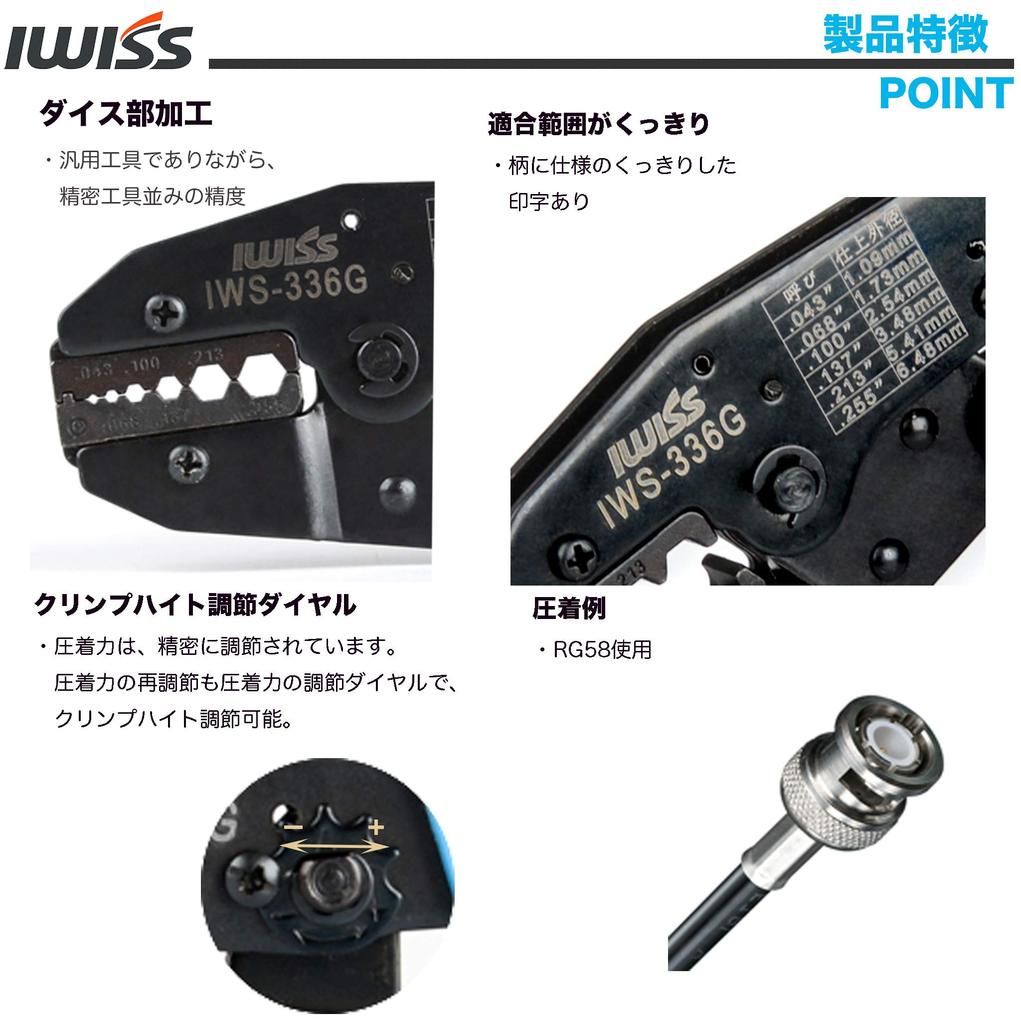

Features: Crimp height adjustment dial, ratchet emergency release
For Canare terminals, it is better to use the Canare dedicated tool. The wall thickness is different from general-purpose terminals, so the crimping shape is not suitable for this model.
Model number Compatible cable Die manufacturer's genuine tool BNC-LP-3A3D-2V, 3C-2V 5.41TA-35 BNC-LP-58ARG-58/U, RG-58A/U 5.41 BNC-LP-5A5D-2V, 5C-2V 8.23 BNCP-3A-K3C-2V 5.41 BNCP-3DA-K3D-2V 5.41 BNCP-3FSA3C-FV 5.41 BNCP-3FX3D-2V 5.41 BNCP-3FXC3C-2V 5.41 BNCP-3SA3C-2V 5.41 BNCP-58A-KRG-58/U, RG-58A/U 5.41 N-BJ-3A3D-2V 5.41 NJ-142ARG-142B/U 5.41 NJ-3A3D-2V5.41 NJ-58ARG-58/U, RG-58A/U5.41 NJ-5A5D-2V8.23 NJ-5FBA5D-FB8.23 NJ-5SFA5D-SFA8.23 N-LP-142ARG-142B/U5.41 N-LP-3A3D-2V5.41 N-LP-58ARG-58/U, RG-58A/U5.41 NP-142ARG-142B/U5.41 NP-3A3D-2V5.41 NP-3FX3D-2V5.
41 NP-58ARG-58/U, RG-58A/U5.41 N-PJ-142ARG-142B/U5.41 N-PJ-3A3D-2V5.41 N-PJ-3A17.53D-2V5.41 N-PJ-58ARG-58/U, RG-58A/U5.41 RP-SMA-BJ-3A3D-2V5.41 RP-SMAP-3A3D-2V5.41 SMA-BJ-3A3D-2V5.41 SMAP-142X(Au) RG-142B/U, RG-223/U5.41 SMAP-142X(Pa) RG-142B/U, RG-223/U5.41 SMAP-3.5A3.5D-Q・SUPER5.41 SMAP-3A3D-2V5.41 SMP-58A-KRG-58/U, RG-58A/U5.41 TNCP-3DA-K3D-2V5.41 TNCP-58A-KRG-58/U, RG-58A/U5.41 Shichisei Science Institute Model number compatible cable used Dice manufacturer genuine tool BNC-P/C-33D-2V5.41D-1113 BNCC-P/C-3※3C-2V5.41 BNCC-PJ/C-3※3C-2V5.41 BNC-P/C-58URG-58U5.41 SMA

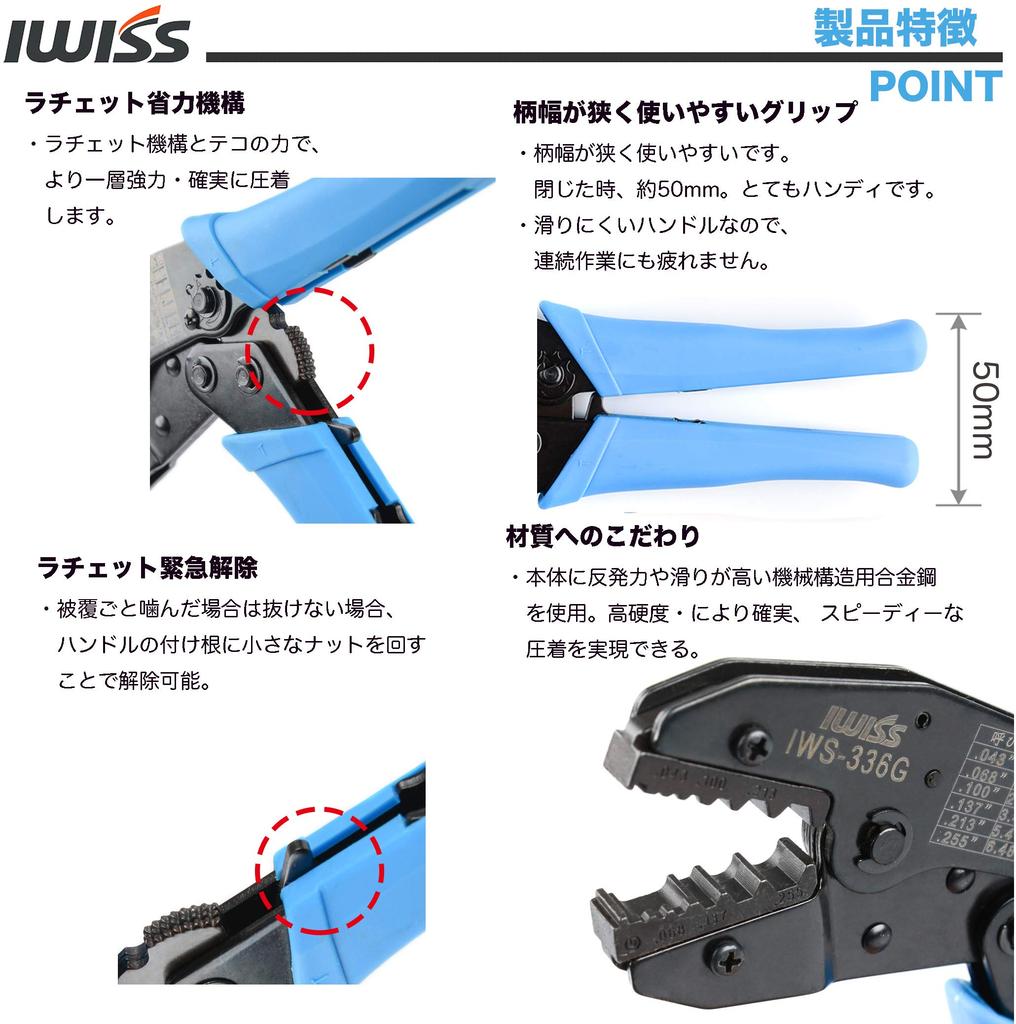

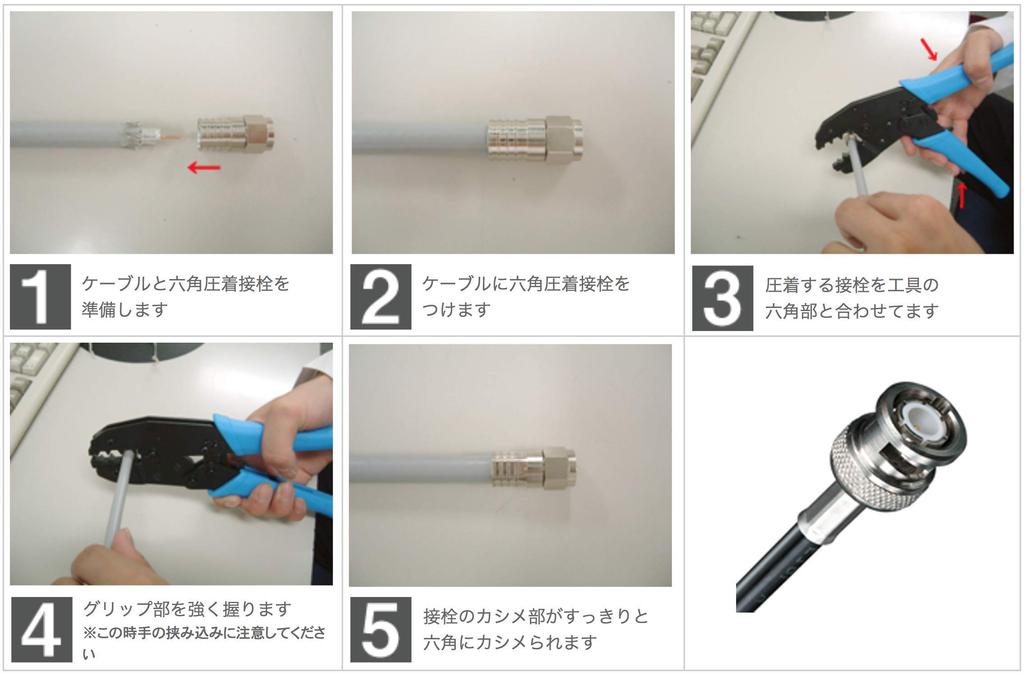

-LP/C-142BU*RG-142B/U, 223/U5.41 SMA-P/C-142BU*RG-142B/U, 223/U5.41 SMA-PJ/C-142BU*RG-142B/U, 223/U5.41 TNC-J/C-3D*3D-2V5.41 TNC-J/C-58U*RG-58U5.41 TNC-P/C-3D3D-2V5.41 TNC-P/C-58URG-58U5.41 This is a dedicated crimping tool for crimping BNC/TNC/BNCC/SMA connectors onto coaxial cables used in a variety of fields, including measurement equipment, broadcasting equipment, security equipment, optical fiber connectors, automotive digital terrestrial tuners, and antennas. Compatible with 1.5C and 2.5C connectors. The ferrule can be crimped to the cable and terminal with light force. It has a ratchet mechanism that prevents release until the ferrule is fully crimped, eliminating the risk of failure due to insufficient crimping. It also has a crimping torque adjustment function. As shown in the image, the die finish and precision are outstanding. It's different from inferior MADE IN CHINA products. ● (Specifications) Hexagonal crimping size: 1.07-1.72-1.98-3.25-3.84-4.5

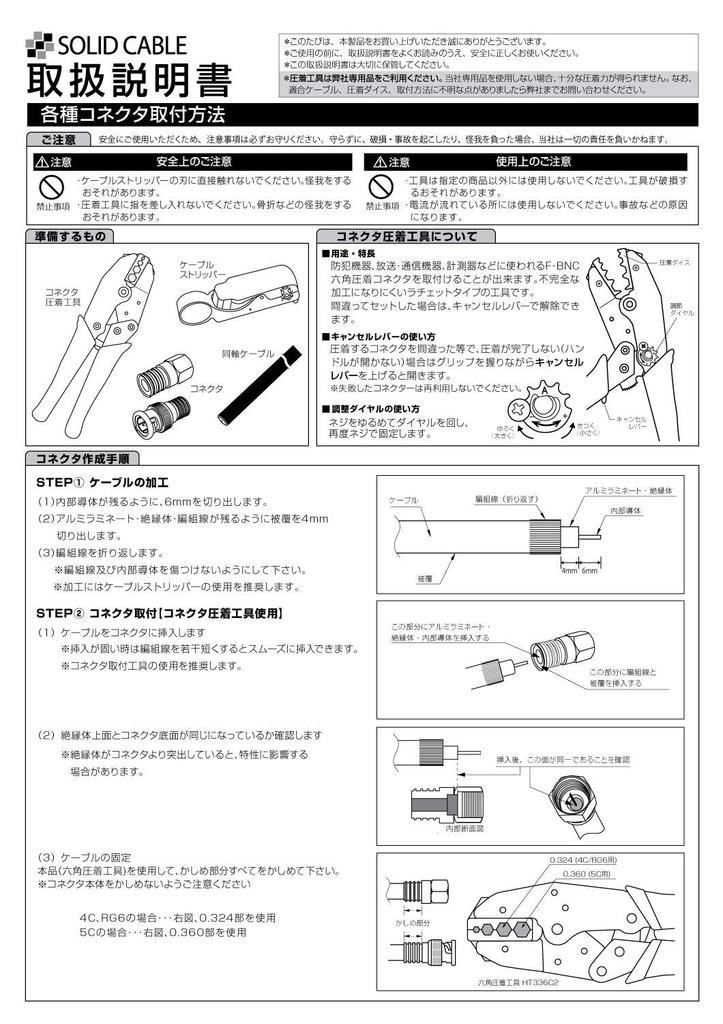

2mm RG174, RG179, 1.5C, etc. This is a general-purpose product. The center contact inner and outer diameters, flat size, connector sleeve inner and outer diameters, and compatible cables vary depending on the connector and cable manufacturer, so please use these figures as a guide only. Japanese instruction manual included. (Please note that as this is a general-purpose product, it may not be compatible depending on the terminal manufacturer. We cannot accept questions regarding use or returns due to incompatibility due to individual differences.) DAIKITOOL.com
